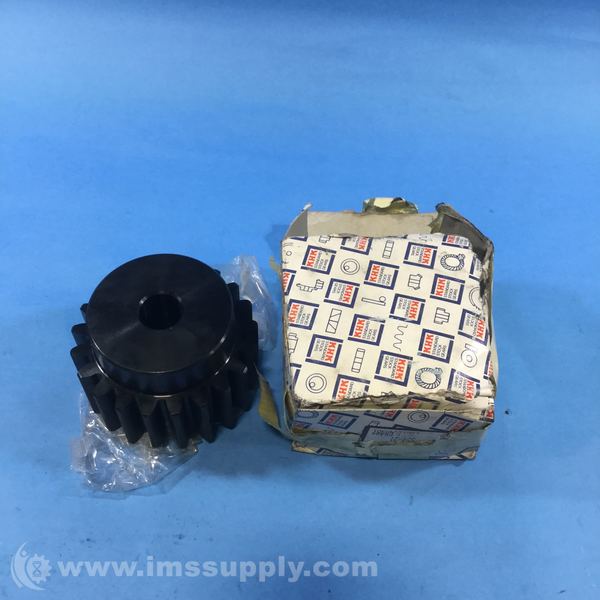

KHK GEARS SS4-21 MODULE 4, 21 TOOTH, CARBON STEEL SPUR GEARS
Starting At: $51.75
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SS4-21
IMS Product Code: 1788903
Packaging: Sold Individually
Description:
Khk SS4-21 Module 4, 21 Tooth, Carbon Steel Spur Gears
Specifications:
- Gear Type: Spur Gears
- Construction: Carbon Steel Spur Gears
- Bore Type: Plain
- Module: 4
- No. of teeth: 21
- Shape: S1
- Bore (A): 20.0 (mm)
- Hub Diameter (B): 69.0 (mm)
- Pitch Diameter (C): 84.0 (mm)
- Outer Diameter (D): 92.0 (mm)
- Face Width (E): 40.0 (mm)
- Hub Width (F): 20.0 (mm)
- Total Length (G): 60.00 (mm)
- Bending Strength (N-m): 395.0000
- Surface Durability (N-m): 27.1000
- Bending Strength (kgf-m): 40.3000
- Surface Durability (kgf-m): 2.76
- Backlash: 0.20-0.44 (mm)
- Weight: 2.18 (kg)
- Precision Grade: JIS grade N8 (JIS B1702-1:1998) JIS grade 4 (JIS B1702:1976)
- Gear Teeth Type: Standard full depth
- Pressure Angle: 20°
- Material: S45C (AISI 1045) Carbon Steel
- Tooth Hardness: (less than 194HB)
