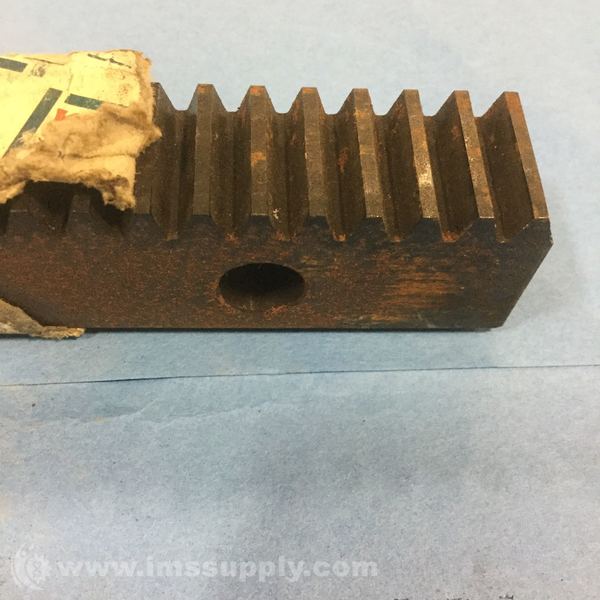

KHK GEARS SRFD2-1500, STEEL RACK WITH BOLT HOLES
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SRFD2-1500
IMS Product Code: 1786309
Packaging: Sold Individually
Description:
Khk SRFD2-1500, Steel Rack with Bolt Holes
Specifications:
- Precision Grade: KHK R 001 grade 4
- Gear Teeth: Standard full depth
- Pressure Angle 20°
- Material: S45C
- Heat Treatment: Stress relieving annealing
- Tooth Hardness: (less than 95HRB)
- Module: 2
- Shape: RD
- Total Length: 1507.96mm
- Face Width: 20mm
- Height (C): 25mm
- Mounting Hole E: 10
- Counterbore H: 7
- Counterbore K: 13
- Mounting Screw Size: M6
- Allowable Force Surface Durability N: 775
- Allowable Force Bending Strength N: 3833
- Allowable Force Surface Durability Kgf: 79.03
- Allowable Force Bending Strength Kgf: 390.9
- Counterbore I: 11
- Counterbore J: 7
- Number Of Mounting Holes: 9
- Effective Number Of Teeth: 240
- Height To Pitch Line: 23
- Mounting Hole F: 33.98
- Mounting Hole G:180
- Series Code: 29
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, November 18, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
