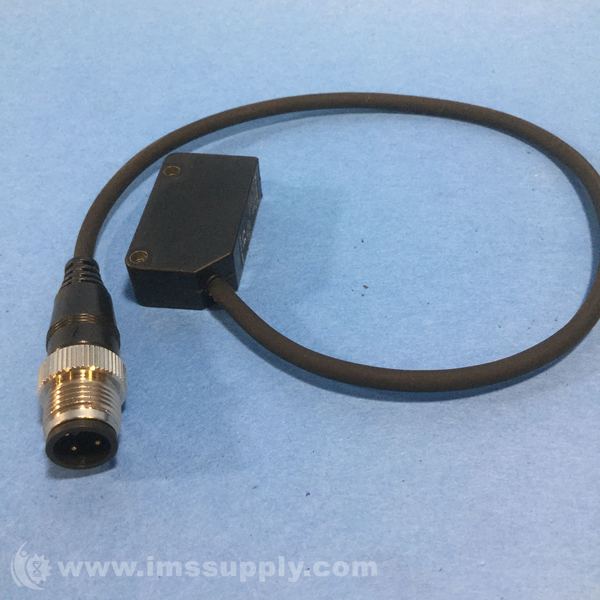

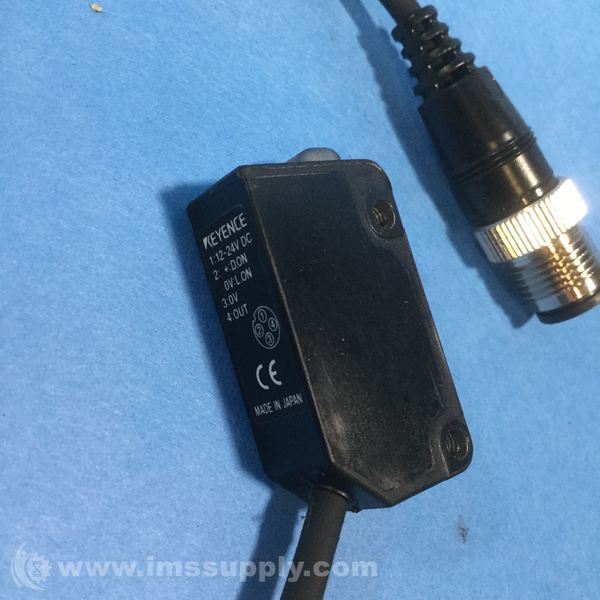

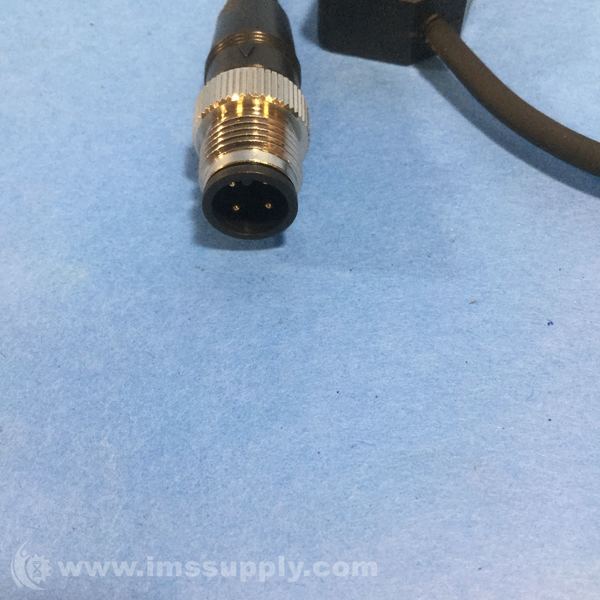

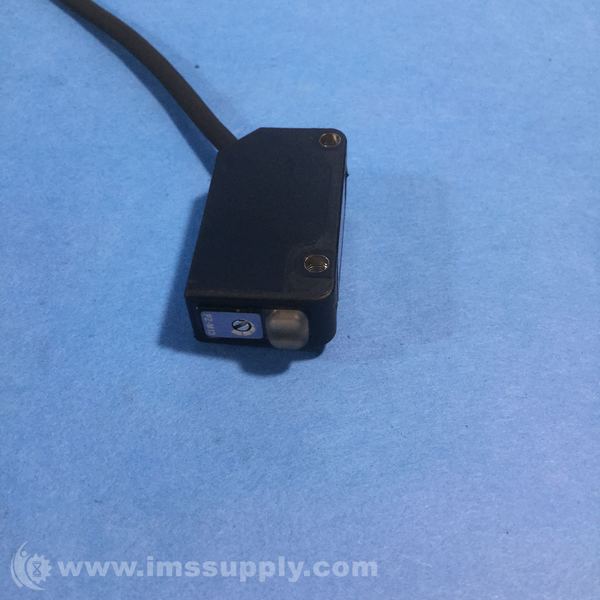

KEYENCE PZ-M13 SQUARE REFLECTIVE M12 CONNECTOR TYPE, NPN
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-M13
IMS Product Code: 1788049
Packaging: Sold Individually
Description:
Keyence PZ-M13 Square Reflective M12 Connector Type, NPN
Specifications:
- Model: PZ-M13
- Type: Multi reflective model (M12 connector cable type)
- Output: NPN
- Detecting distance: 5 to 100 mm (100 x 100 mmwhite mat paper)*1
- Setting distance: 30 to 100 mm (100 x 100 mmwhite mat paper)
- Light source: Red LED
- Sensitivity adjustment: 1-turn trimmer (230°)
- Response time: 1 ms max.
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output and power: Orange LED, Stable operation: Green LED
- Control output: 100 mA (40 V) max.Residual voltage: 1 V max.
- Digital monitor: ―
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Rating:
- Power voltage- 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Power consumption- 30 mA or less
- Environmental resistance
- Enclosure rating- IP67
- Ambient light- Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Ambient temperature- -20 to +55 °C (No freezing)
- Relative humidity- 35 to 85 % RH (No condensation)
- Vibration resistance- 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance- 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case material: Glass-fibre reinforced plastic
- Weight: Approx. 25 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
