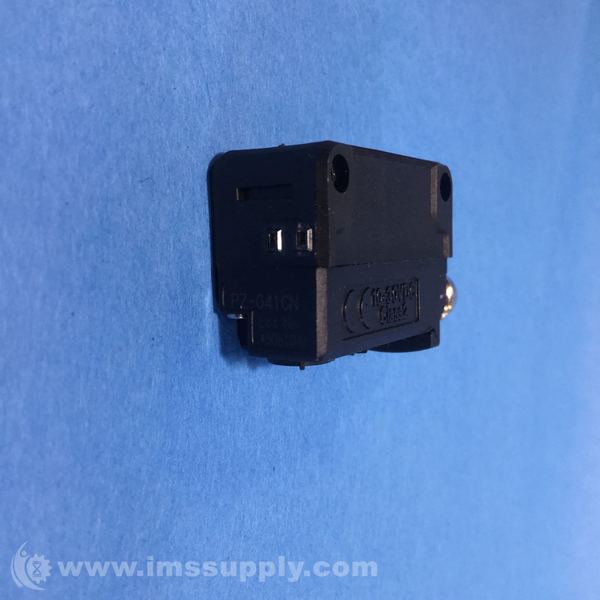

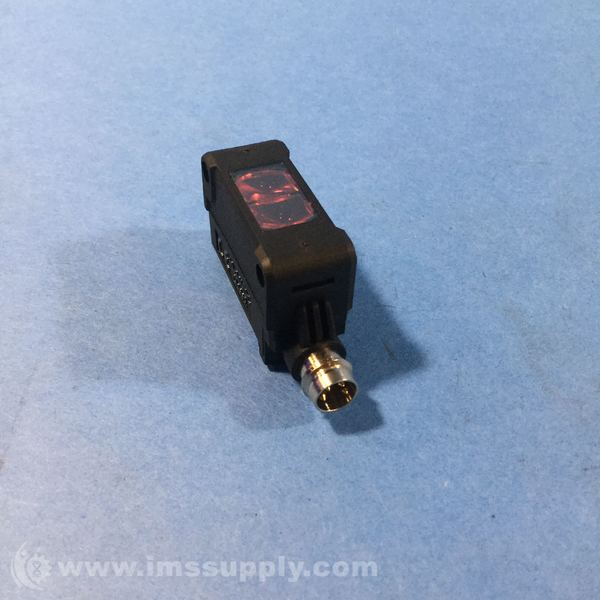

KEYENCE PZ-G41CN SQUARE REFLECTIVE M8 CONNECTOR TYPE, NPN
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PZ-G41CN
IMS Product Code: 1788994
Packaging: Sold Individually
Description:
Keyence PZ-G41CN Square Reflective M8 Connector Type, NPN
Specifications:
- Type: Diffuse Reflective, Long-range
- Shape: Rectangular
- Output: NPN
- Cable Connection: M8 connector
- Detecting Distance: 1 m 3.3' (When detecting 30 x 30 cm 11.81"x11.81" white paper)
- Light Source: Red LED
- Sensitivity Adjustment: 1-turn trimmer (230°)
- Response Time: 500 µs
- Operation Mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicators (LED): Output: Orange LED, Stable operation: Green LED
- Control Output: Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
- Protection Circuit: Reversed Polarity, Overcurrent Protection, Surge Absorber
- Interference Suppression: Up to 2 units (with the automatic different frequency function)
- Tightening Torque: Rectangular Models (Mounting hole part): 0.5 N m max.
- Rating:
- Power Voltage - 10 to 30 VDC, including Ripple (P-P) 10 %
- Current Consumption - 34 mA or less
- Environmental Resistance:
- Enclosure Rating - IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
- Ambient Light: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Ambient Temperature: -20 to +55 °C -4 to 131 °F (No freezing)
- Relative Humidity - 35 to 85 % RH (No condensation)
- Vibration Resistance - 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Shock resistance - 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Material:
- Housing, M18 Nut (threaded models only) - Glass-fiber reinforced PBT
- Lens Cover - Polyarylate (PAR)
- Trimmer - Glass-fiber reinforced polyamide (PA)
- Case Connection - Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
- Cable (cable models only) - Polyvinyl chloride (PVC)

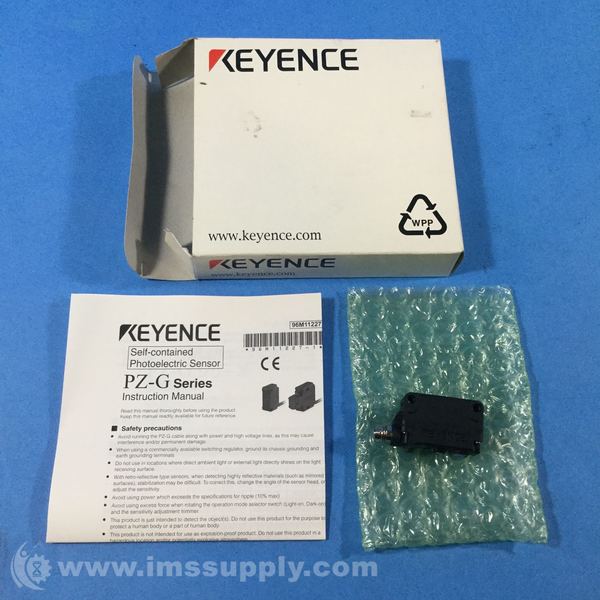

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
