KEYENCE AP-15S SENSOR HEAD, POSITIVE-PRESSURE TYPE, 20 MPA

Starting At: $362.25

Quick Overview

Manufactured By: KEYENCE
Manufacturer Part Number: AP-15S
IMS Product Code: 1802324
Packaging: Sold Individually

Description:

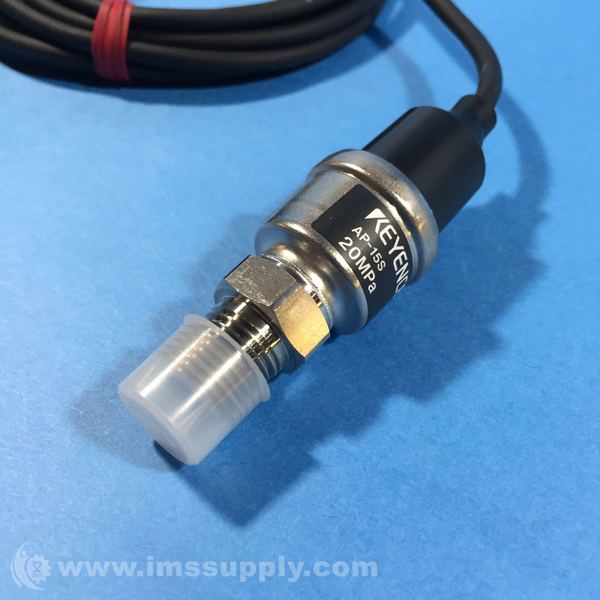

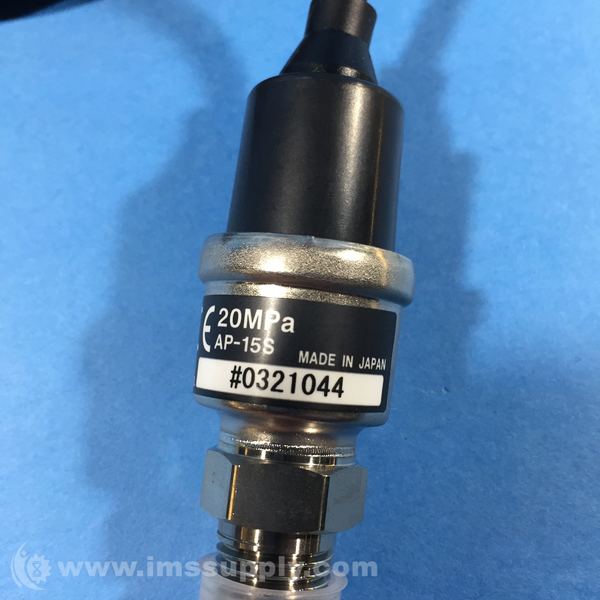

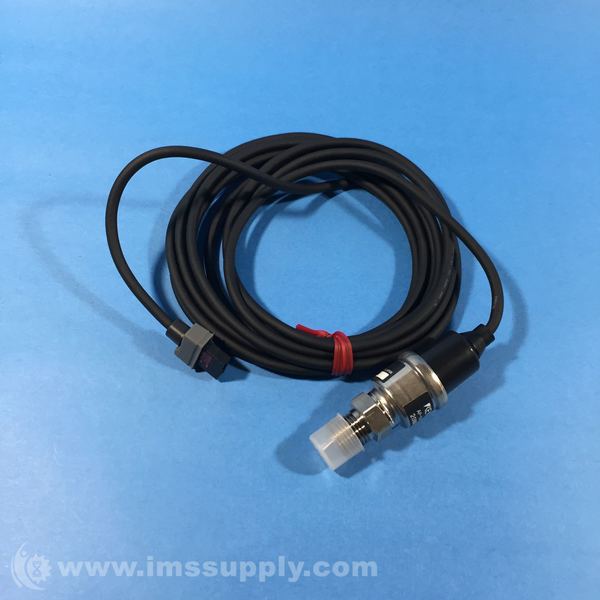

Keyence AP-15S Sensor Head, Positive-pressure Type, 20 MPa

Specifications:

  • Model:  AP-15S
  • Rated pressure:  0 to 2,900 PSI
  • Fluid type:  Gases and liquids compatible with TYPE 304 and TYPE S17400 stainless steel
  • Type of pressure:  Gage pressure
  • Repeatability:  ±0.5 % of F.S. max.
  • Connection port:  R (PT) 1/4 (with a throttle)
  • Environmental resistance:
    • Enclosure rating: IP67
    • Pressure resistance:  40 MPa
    • Ambient temperature: -20 to +100 °C -4 to 212 °F (No freezing)*1
    • Relative humidity:  35 to 85 % RH (No condensation)
    • Vibration resistance:  10 to 55 Hz, Double amplitude 1.5 mm 0.06", 3 hours in each of the X, Y, and Z axis
    • Shock resistance: 500 m/s2, 10 times in each direction of each of X, Y and Z axis, 60 times in total
  • Material:  Diaphragm pressure port: TYPE S17400 stainless steel, Pressure port: TYPE 304 stainless steel, Throttle: TYPE 304 stainless steel

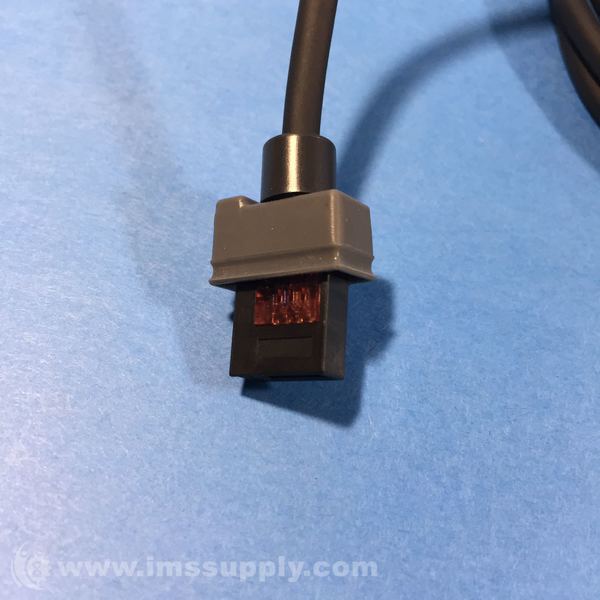

  • Accessories:  Sensor head connector: 1
  • Weight:  Approx. 130 g

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 1 In Stock

Ships Tomorrow

Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.


Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Keyence. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
