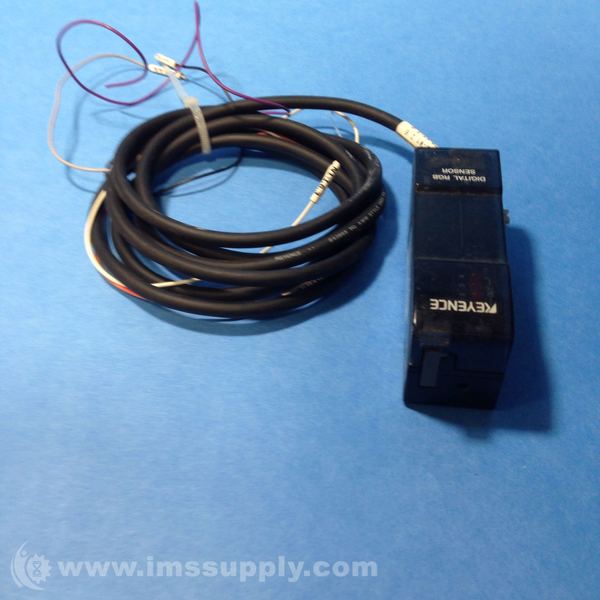

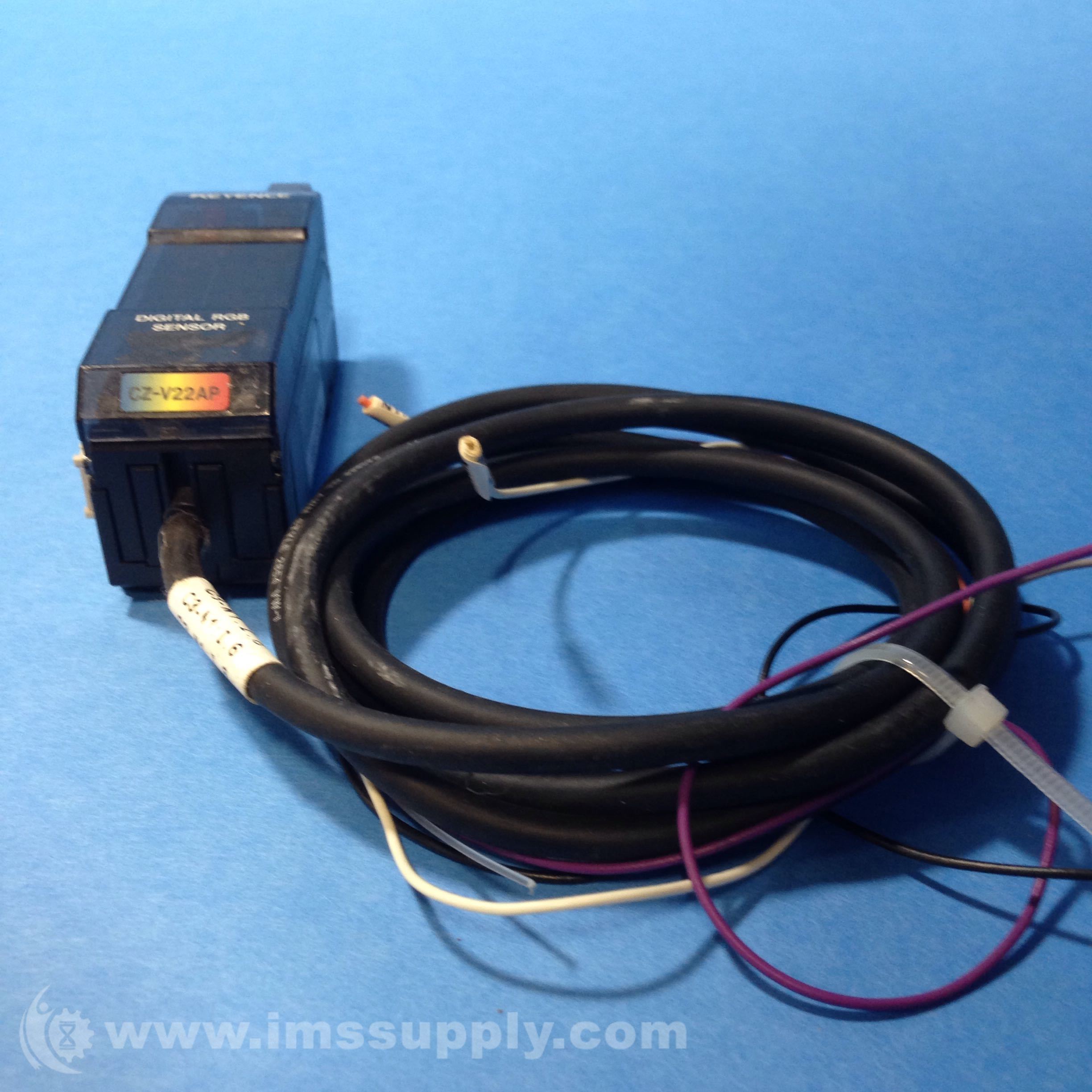

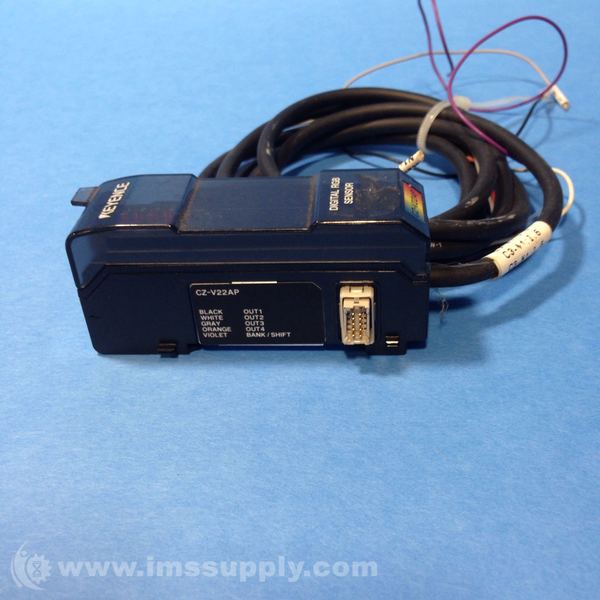

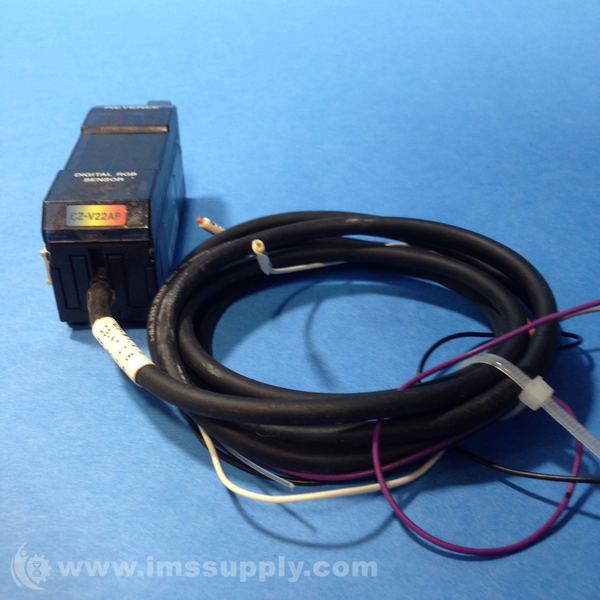

KEYENCE CORP CZ-V22AP SENSOR DIGITAL RGB FIBRE OPTIC AMPLIFIER
Starting At: $241.50
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: CZ-V22AP
IMS Product Code: 1747346
Packaging: Sold Individually
Description:
Keyence Corp CZ-V22AP Sensor Digital RGB Fibre Optic Amplifier 30VDC
- Model: CZ-V22AP*1
- Output: PNP output
- Main unit/expansion unit: Expansion unit
- Response time: 200 μs (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
- Control output: PNP open-collector x 4 channels, 30 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2
- Protection circuit: Reverse-polarity protection, overcurrent protection, surge absorber
- External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode): Input time: 20 ms min.
- Timer function: Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
- Unit expansion: Up to 3 units (4 units total including the main unit)
- Number of interference prevention units: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
- Rating Power voltage: 24 VDC, Ripple (P-P) 10 % or less
- Power source Power consumption: Normal mode: 1.5 W (62.5 mA or less), Eco-mode: 1 W (42.0 mA or less)
- Environmental resistance Ambient temperature: -10 to +55 °C 14 to 131 °F (No freezing)*3
- Environmental resistance Vibration: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z axis
- Material: Housing, cover: Polycarbonate
- Accessories: End Unit × 2
- Weight: Approx. 100 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, November 18, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships on Monday, November 18, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
