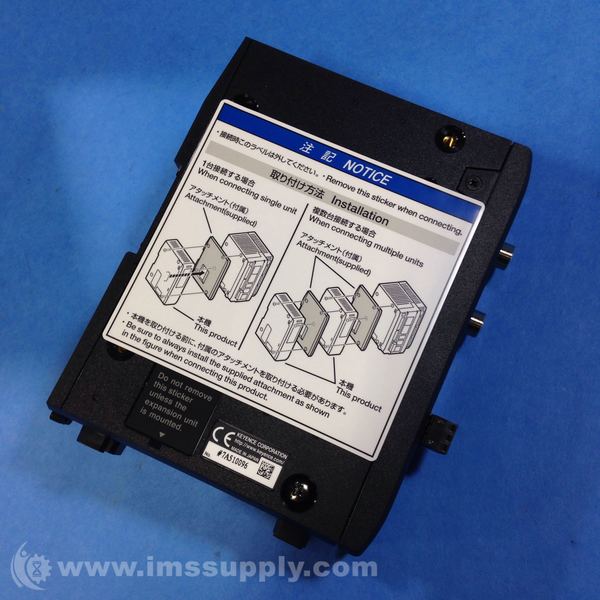

KEYENCE CORP CA-DC30E

Call For Quote

Quick Overview

Manufactured By: KEYENCE CORP
Manufacturer Part Number: CA-DC30E
IMS Product Code: 1737034
Packaging: Sold Individually

Description:

Type:                                     Illumination Controllers


Output

Light control method:            Constant voltage control method
Intensity range:                     255 level digital [Program setting]

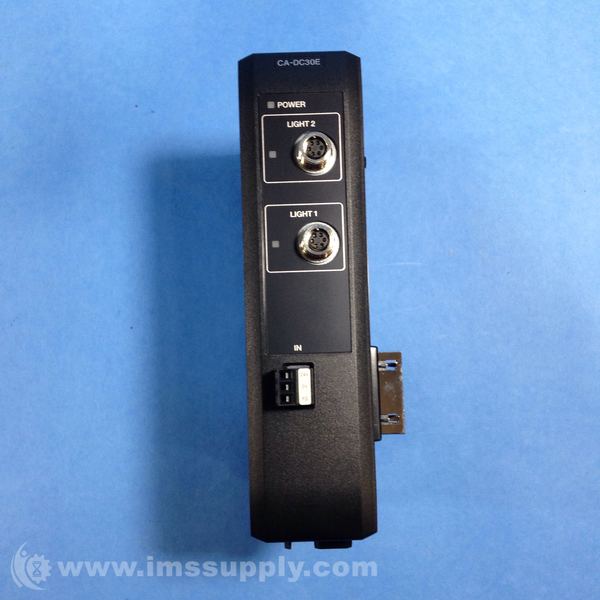

Connection points:                2 ch (dedicated 6-pole circular                                                       connector)
Voltage:                                 LumiTraxTM light dedicated power                                                 supply
Capacity:                              Max. 81 W
Synchronization:                  Camera trigger/shutter speed                                              synchronization
Response speed:                 Less than 1 ms


Display

LED display:   Light recognized: green, disconnection error: red
Rating

Power supply voltagez:            24 VDC ±10%
Current consumption:               5 A (at maximum load)*1


Environmental resistance

Ambient temperature:             0 to +50°C 32 to 122°F *2*3
Ambient humidity:                   35 to 85% RH (No condensation)*2
Weight:                                   Approx. 430 g




Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Keyence Corp. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
