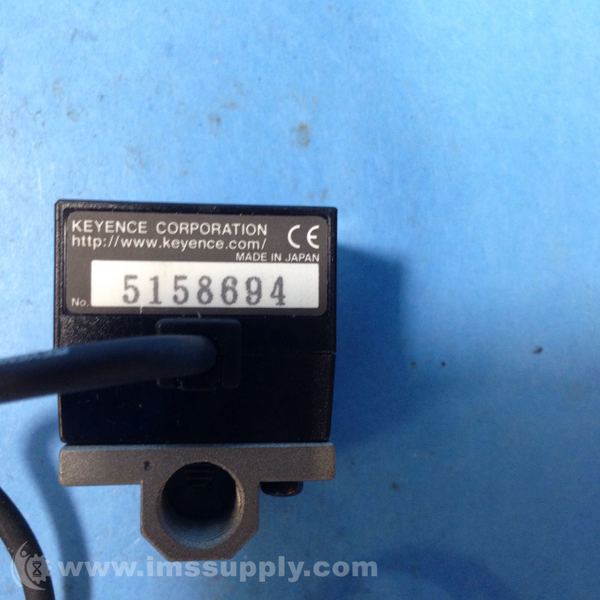

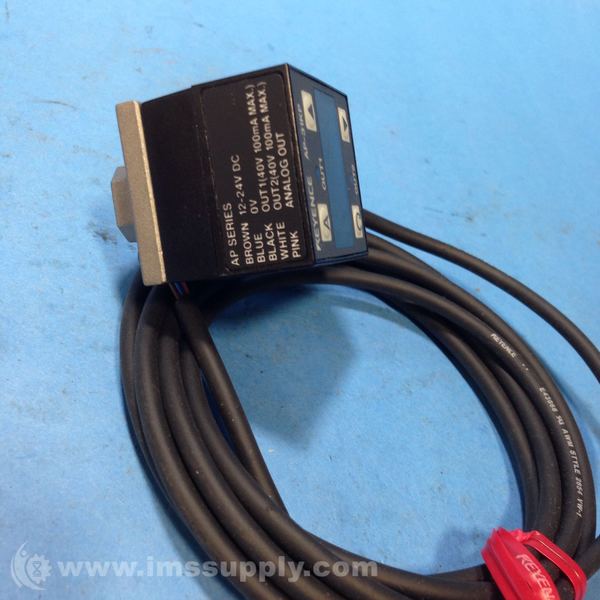

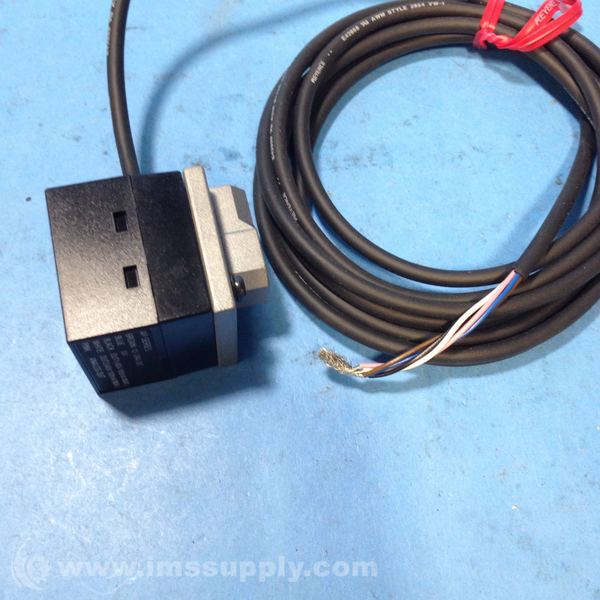

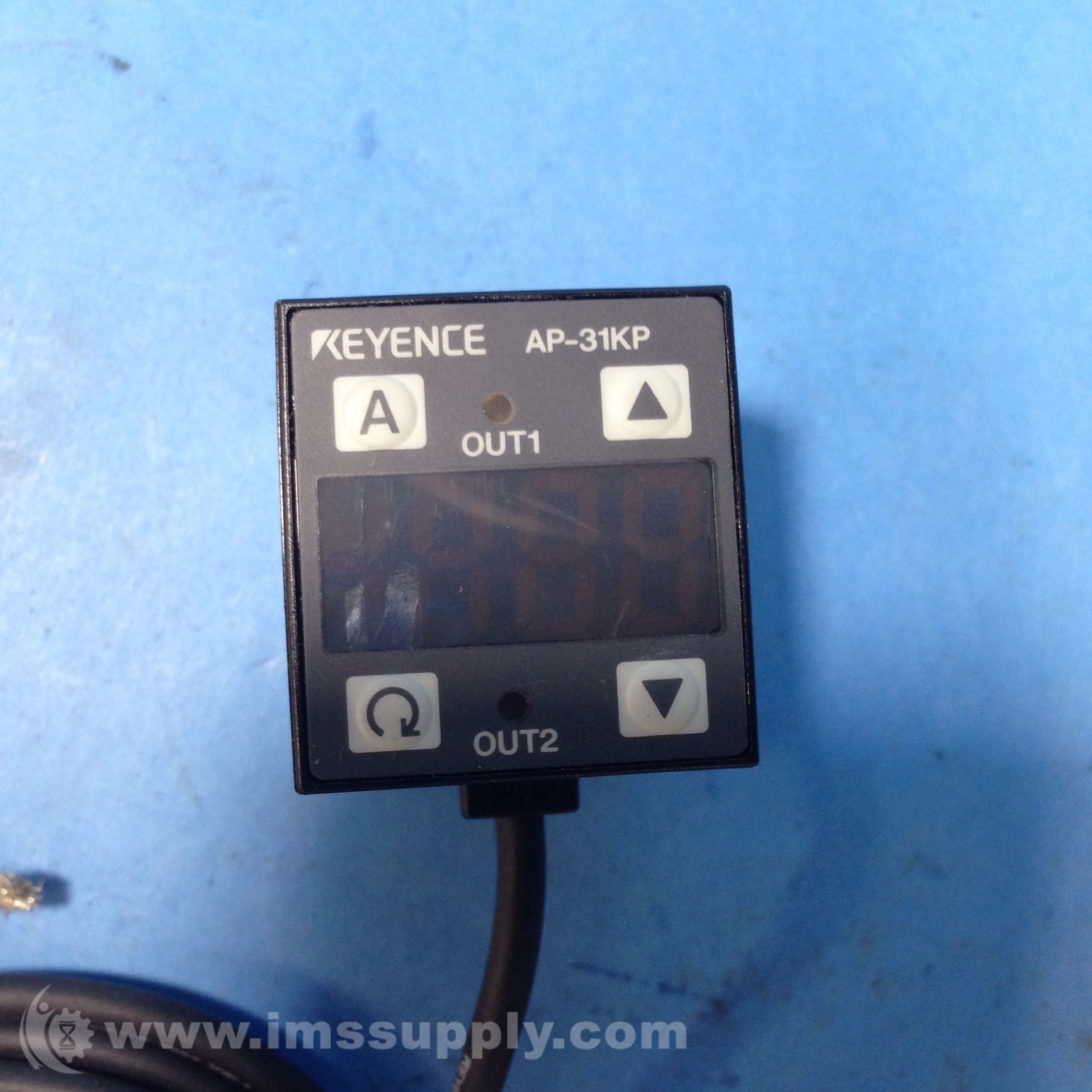

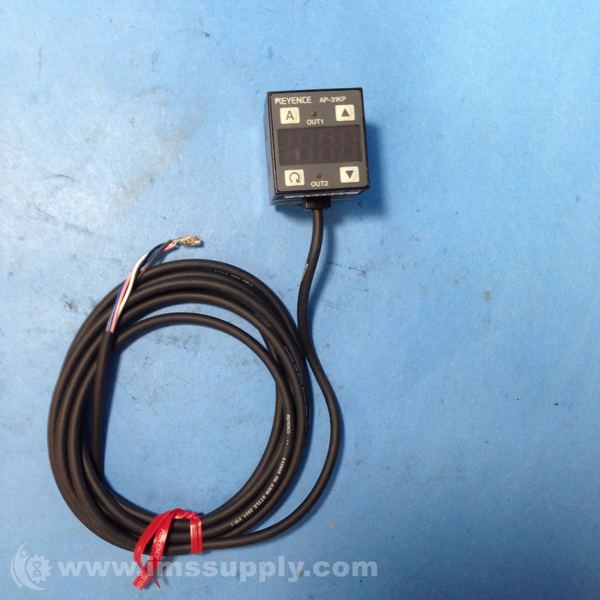

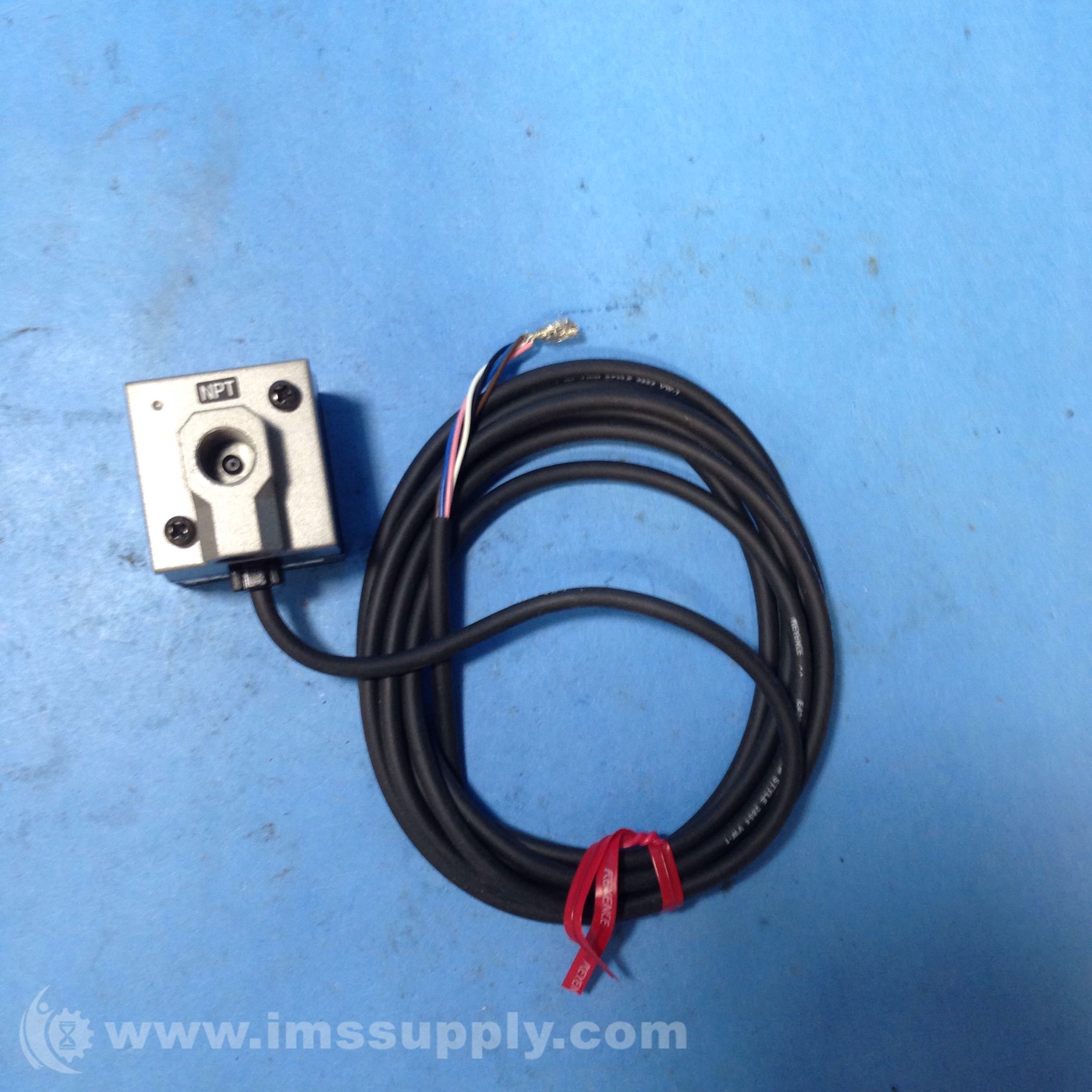

KEYENCE CORP AP-31KP
Quick Overview
Manufactured By: KEYENCE CORP
Manufacturer Part Number: AP-31KP
IMS Product Code: 1747196
Packaging: Sold Individually
Description:
- Model: AP-31KP
- Type: Negative pressure , Analog [cannot be used within Japan according to the Measurement Act]
- Output: PNP output
- Rated pressure: 0 to -101.3 kPa (0 to -760 mmHg)
- Type of pressure: Gauge pressure, air or non-corrosive gases
- Fluid type: Air or non-corrosive gases
- Display resolution: 0.1 inchHg,0.1 kPa, 1 mmHg, 0.001 bar
- Display range: -15% to +110% of F.S.
- Response time (chatterprevention function): 2.5/5/100/500 ms (selectable)
- Display power: 3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43")
- I/O Control output: PNP open-collector 100 mA max. (40 V max.), Residual voltage: 1 V max. 2-output (N.O./N.C.selectable)
- I/O Analog output: 1 to 5 V (Load impedance: 47 kΩ min.)
- I/O Zero-shift input: ―
- I/O Display: ±1% max. (of F.S.) of detecting pressure at 25°C 77°F (0 to 50°C 32 to 122°F)
- Control output hysteresis: Variable (when hysteresis mode is selected), 0.5% of F.S. in standard mode
- Rating Power voltage: 12 to 24 VDC ±10 %
- Rating Current consumption: 50 mA (at 24 V) or less, 90 mA (at 12 V) or less
- Environmentalresistance Pressure resistance: 4.9 bar (490 kPa)
- Environmental resistance Ambient temperature: 0 to +50 °C 32 to 122 °F (No freezing)
- Environmental resistance Relative humidity: 35 to 85 % RH (No condensation)
- Environmental resistance Vibration: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

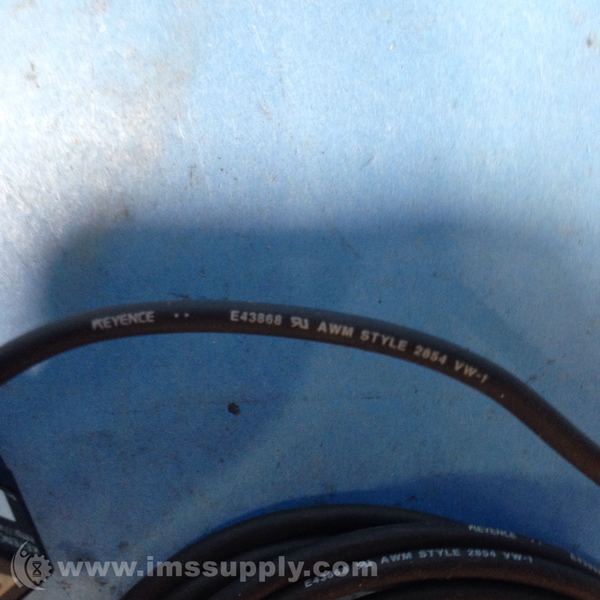

- Material: Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone,Pressure port: Die-cast zinc, Cable: Oil-proof cabtyre cable
- Accessories: Mounting bracket A, mounting bracket B, hexagon socket head cap plug
- Weight: Approx. 120 g
