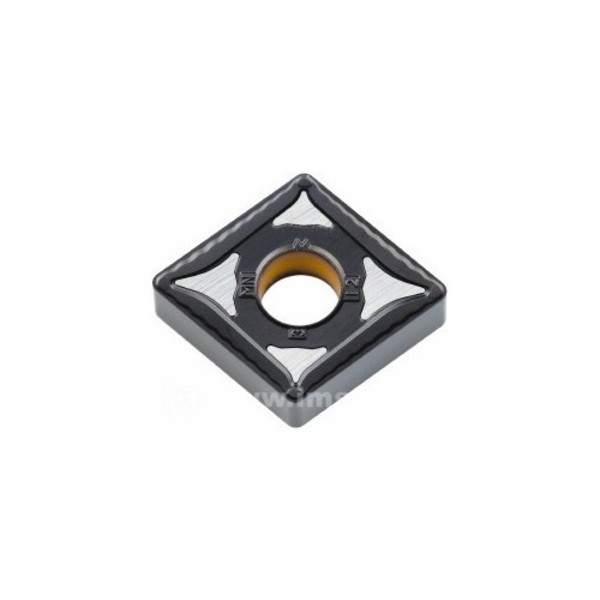

KENNAMETAL 3749471 INSERT NEGATIVE MEDIUM CNMG643MN KCP10
Quick Overview
Manufactured By: KENNAMETAL
Manufacturer Part Number: 3749471
IMS Product Code: 1790336
Packaging: Sold Individually
Description:
Kennametal 3749471 Insert Negative Medium Cnmg643Mn Kcp10
Specifications:
- Insert Style CNMG
- Insert Size 643
- Material Carbide
- Inscribed Circle 0.7500
- Inscribed Circle 3/4
- Thickness 1/4
- Thickness 0.2500
- Corner Radius 3/64
- Corner Radius 0.0469
- Manufacturer's Grade KCP10
- Coating TiCN/Al2O3
- Material Grade C3/C7
- Chip breaker MN
- Length (mm) 19.34
- Length (Decimal Inch) 0.7614
- Hole Diameter (mm) 7.93
- Hole Diameter (Decimal Inch) 0.3122
- Rake Neutral
- Rake Angle 0
- Relief Angle 0
- Coating Process CVD
- Primary Workpiece Material P
- Included Angle 80
- Series KENLOC
- Maximum Depth of Cut (mm) 1.25
- Maximum Depth of Cut (Decimal Inch) 0.0492
- Insert Holding Method Screw or Clamp
- Shape Diamond
