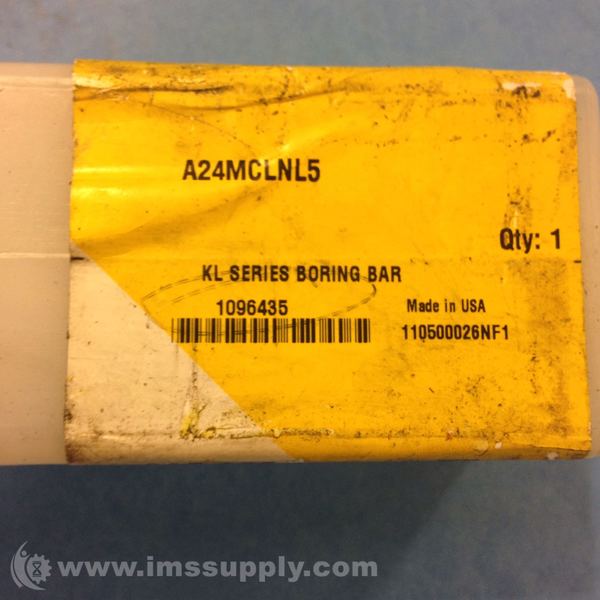

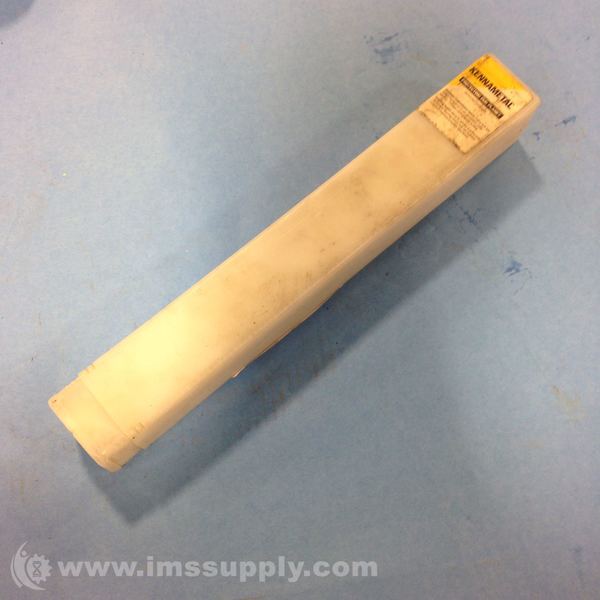

KENNAMETAL 1096435 44.7MM MIN BORE DIAM, 1-1/2" SHANK DIAM

MSRP: $367.32
Starting At: $142.31

Quick Overview

Manufactured By: KENNAMETAL
Manufacturer Part Number: 1096435
IMS Product Code: 1733829
Packaging: Sold Individually

Description:

Kennametal 1096435 44.7mm Min Bore Diam, 1-1/2" Shank Diam, 14" OAL, A-MCLN Indexable Boring Bar, A24MCLNL5

Specifications:

  • Toolholder Style: A-MCLN
  • Series: Kenloc
  • Minimum Bore Diameter (mm):  44.70
  • Minimum Bore Diameter (Decimal Inch): 1.7600
  • Hand of Holder: Left Hand
  • Overall Length (mm):  355.60
  • Overall Length (Inch): 14
  • Overall Length (Decimal Inch): 14.0000
  • Shank Diameter (mm): 38.10
  • Shank Diameter (Inch): 1-1/2
  • Shank Diameter (Decimal Inch): 1.5000
  • Insert Compatibility: CN..
  • Through Coolant: Yes
  • Multi-Use Tool: No
  • Insert Holding Method: Screw or Clamp
  • Rake: Negative
  • Lead Angle: -5
  • Center to Cutting Edge (Decimal Inch): 0.8900
  • Insert Thickness (Inch): 1/4
  • Insert Inscribed Circle (Inch): 5/8
  • Rake Angle: 5
  • Coolant Hole Thread Size (Inch): 1/4-18 NPT
  • Complete Insert Compatibility: CN.. 543
  • Toolholder Material: Steel




New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).

Availability: 3 In Stock

Ships today if ordered in the next 15 hours and 29 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Kennametal. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
