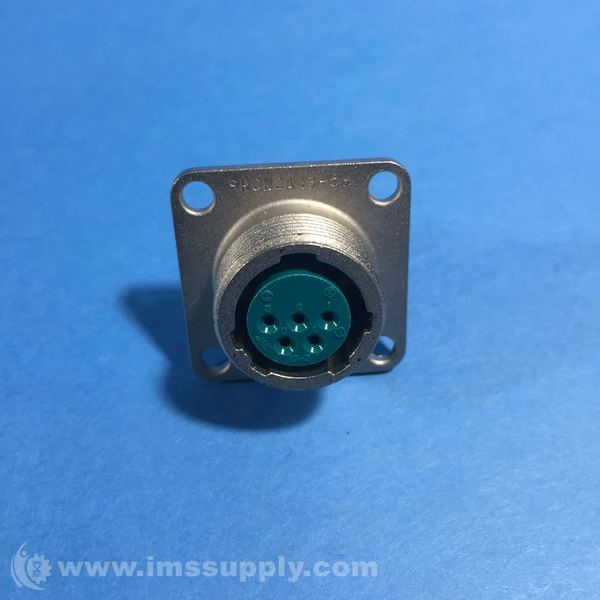

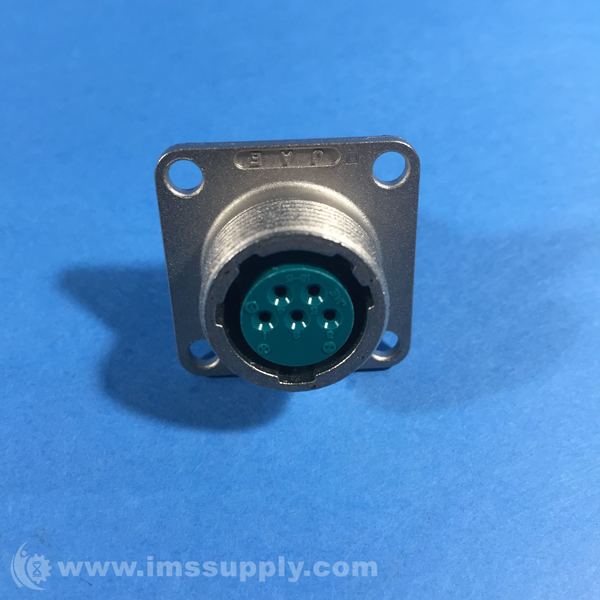

JAE CONNECTORS SRCN2A13-5S SRCN SERIES PANEL ATTACHED RECEPTACLE
Starting At: $4.03
Quick Overview
Manufactured By: JAE CONNECTORS
Manufacturer Part Number: SRCN2A13-5S
IMS Product Code: 1811090
Packaging: Sold Individually
Description:
Jae Connectors SRCN2A13-5S SRCN Series Panel Attached Receptacle
Specifications:
- Status: Active
- RoHS compliant: Yes
- Series Name: SRCN Series
- Connector types: Panel attached receptacle
- Number of positions: 5
- Shell Size: 13
- Contact type: Socket
- Contact arrangement code: 13-5
- Contact size * No. of contacts: #20*5
- Applicable wire size (mm2): 0.5 max.
- Applicable wire (AWG No.): #20 AWG max.
- Finish of contact in contact area: Silver plating
- Rated current (A): 5 max.
- Dielectric withstanding voltage (VACr.m.s. 1minute): 1000
- Insulation resistance (megohm min.): 1000 min.
- Contact resistance (milliohm (DC1V)): 5 max.
- Waterproof: Non Waterproof
- Outer shell color: Nickel plating
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
