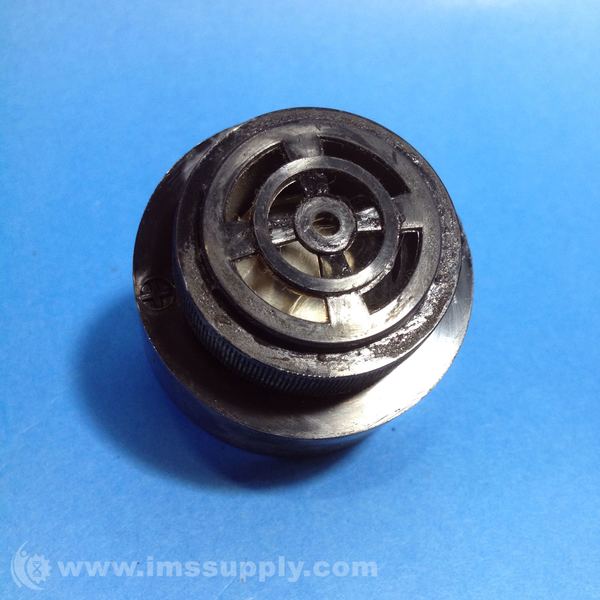

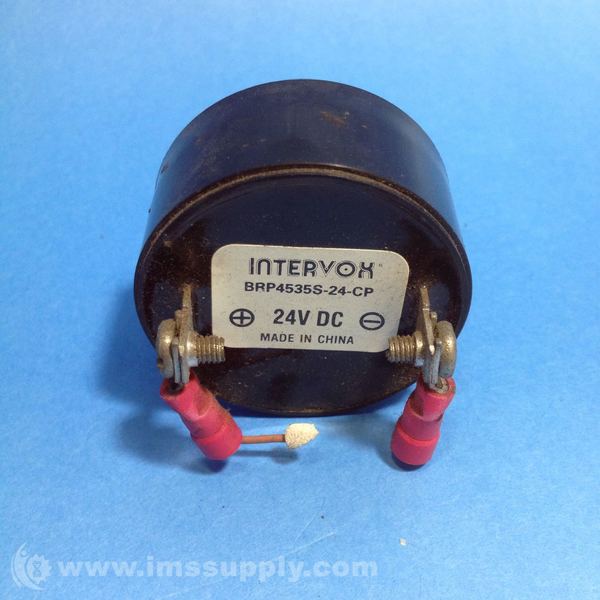

INTERVOX BRP4535S-24-CP PIEZOELECTRIC ALARM; 80 DB (MIN.) @ 30 CM

MSRP: $7.74
Starting At: $2.16

Quick Overview

Manufactured By: INTERVOX
Manufacturer Part Number: BRP4535S-24-CP
IMS Product Code: 1748525
Packaging: Sold Individually

Description:

Intervox BRP4535S-24-CP Piezoelectric Alarm; 80 dB (Min.) @ 30 cm; Intermit; 4 to 28; 22 mA (Max.)

Specifications:

  • Brand/Series: BRP Series
  • Current Rating: 22 mA
  • Current, Operating: 22 mA (Max.)
  • Decibel Range: Maximum of 80 dB
  • Decibels at 1 Meter: 80 dB @ 30 cm
  • Diameter: 43.5 mm
  • Features: Internal Circuitry
  • Frequency: 2900 Hz
  • Frequency, Oscillator: 2900 Hz +⁄- 500 Hz
  • Length: 1.36" (34.5mm)
  • Length Tolerance: +⁄- 0.5mm
  • Mounting Style: Panel
  • Operation: Intermittent
  • Operation Mode: Intermit
  • Primary Type: Alarm
  • Sound Level: 80 dB (Min.) @ 30 cm
  • Special Features: With Internal Circuitry
  • Standards: UL94V-0 Specification
  • Supply Voltage: 4 to 28 VDC
  • Temperature Range: -20 to +60 °C
  • Temperature, Opening, Maximum: 60 °C
  • Temperature, Operating, Maximum: 60 °C
  • Temperature, Operating, Minimum: -20 °C
  • Termination: Lugs
  • Tone: Intermittent
  • Type: Piezoelectric
  • Voltage, Operating: 4 to 28

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
