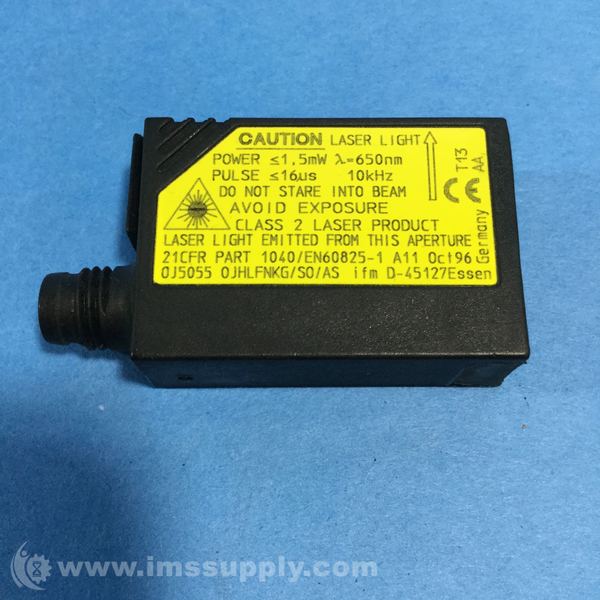

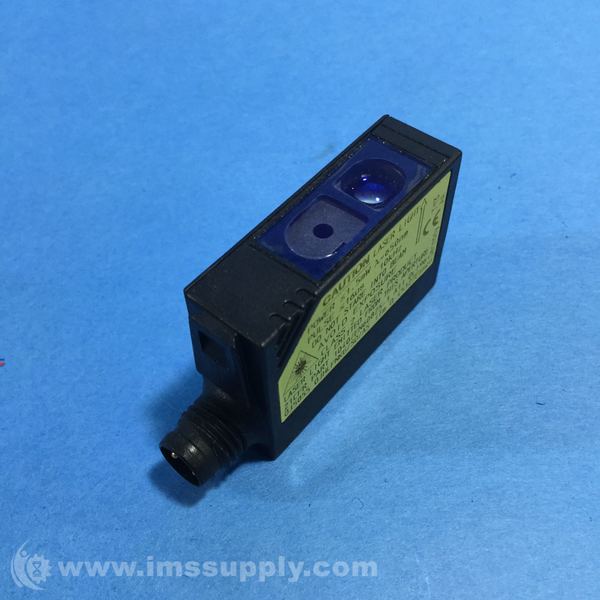

IFM OJ5055 EFECTOR 200 PHOTO ELECTRIC SENSOR, OJHLFNKG/SO/AS
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: OJ5055
IMS Product Code: 689178
Packaging: Sold Individually
Description:
Ifm OJ5055 Efector 200 Photo Electric Sensor, OJHLFNKG/SO/AS
Specifications:
- Electrical Design: DC NPN
- Operating Voltage [V]: 10...30 DC
- Current Consumption [mA]: 13
- Type of Light: Red Light 650 nm
- Life Expectancy typ. [h]: 50000
- Protection Class: III
- Reverse Polarity Protection: yes
- Output Function: Light-on / Dark-on Programmable
- Voltage Drop [V]: < 2.5
- Current Rating [mA]: 200
- Short-circuit protection yes (non-latching)
- Overload protection yes
- Switching frequency [Hz] 1000
- Range [mm] 15...200 (Range referred to white paper 200 x 200 mm, 90 % remission)
- Smallest detectable object [mm] 2
- Light spot diameter [mm] 2 x 1 ( vertical )
