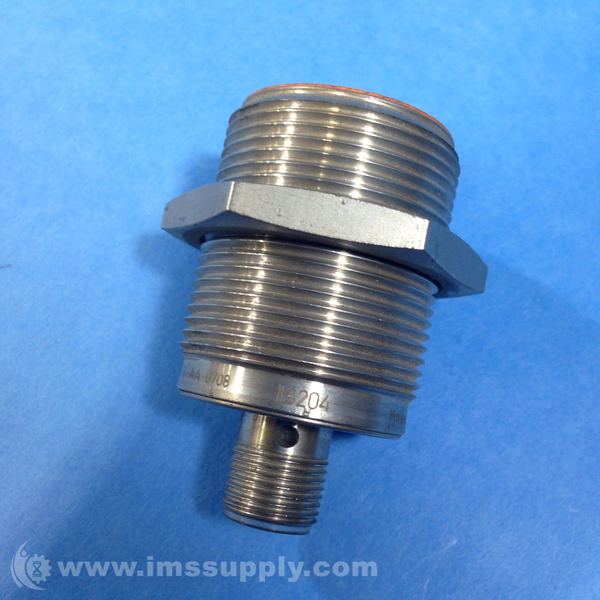

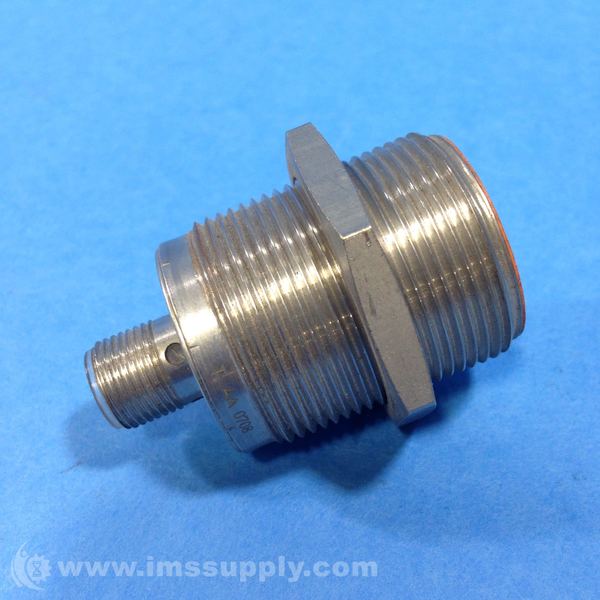

IFM IIS204 PROXIMITY SWITCH
Starting At: $21.56
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IIS204
IMS Product Code: 1735337
Packaging: Sold Individually
Description:
| Inductive sensor | ||||||||||||
| Metal thread M30 x 1.5 | ||||||||||||
| Quick disconnect | ||||||||||||
| Increased sensing range | ||||||||||||
| gold-plated contacts | ||||||||||||
| Sensing range 15 mm; [f] flush mountable | ||||||||||||
| Electrical data | ||||||||||||
| Electrical design | DC PNP | |||||||||||
| Operating voltage [V] | 10...30 DC; cULus - Class 2 source required | |||||||||||
| Current consumption [mA] | < 10 | |||||||||||
| Protection class | II | |||||||||||
| Reverse polarity protection | yes | |||||||||||
| Outputs | ||||||||||||
| Output function | normally open | |||||||||||
| Voltage drop [V] | < 2.5 | |||||||||||
| Current rating [mA] | 100 | |||||||||||
| Short-circuit protection | yes | |||||||||||
| Overload protection | yes | |||||||||||
| Switching frequency [Hz] | 100 | |||||||||||
| Monitoring range | ||||||||||||
| Sensing range [mm] | 15 | |||||||||||
| Real sensing range (Sr) [mm] | 15 ± 10 % | |||||||||||
| Operating distance [mm] | 0...12.15 | |||||||||||
| Accuracy / deviations | ||||||||||||
| Correction factors | mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / aluminium approx. 0.4 / copper approx. 0.3 | |||||||||||
| Hysteresis [% of Sr] | 3...15 | |||||||||||
| Switch-point drift [% of Sr] | -10...10 | |||||||||||
| Environment | ||||||||||||
| Ambient temperature [°C] | -25...70 | |||||||||||
| Protection | IP 67 | |||||||||||
| Tests / approvals | ||||||||||||
| EMC |
| |||||||||||
| MTTF [Years] | 1528 | |||||||||||
| UL approval number | A001 | |||||||||||
| Mechanical data | ||||||||||||
| Mounting | flush mountable | |||||||||||
| Housing materials | brass white bronze coated; active face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated | |||||||||||
| Weight [kg] | 0.119 | |||||||||||
| Displays / operating elements | ||||||||||||
| Output status indication LED | 4 x yellow | |||||||||||
| Electrical connection | ||||||||||||
| Connection | M12 connector; gold-plated contacts |
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
