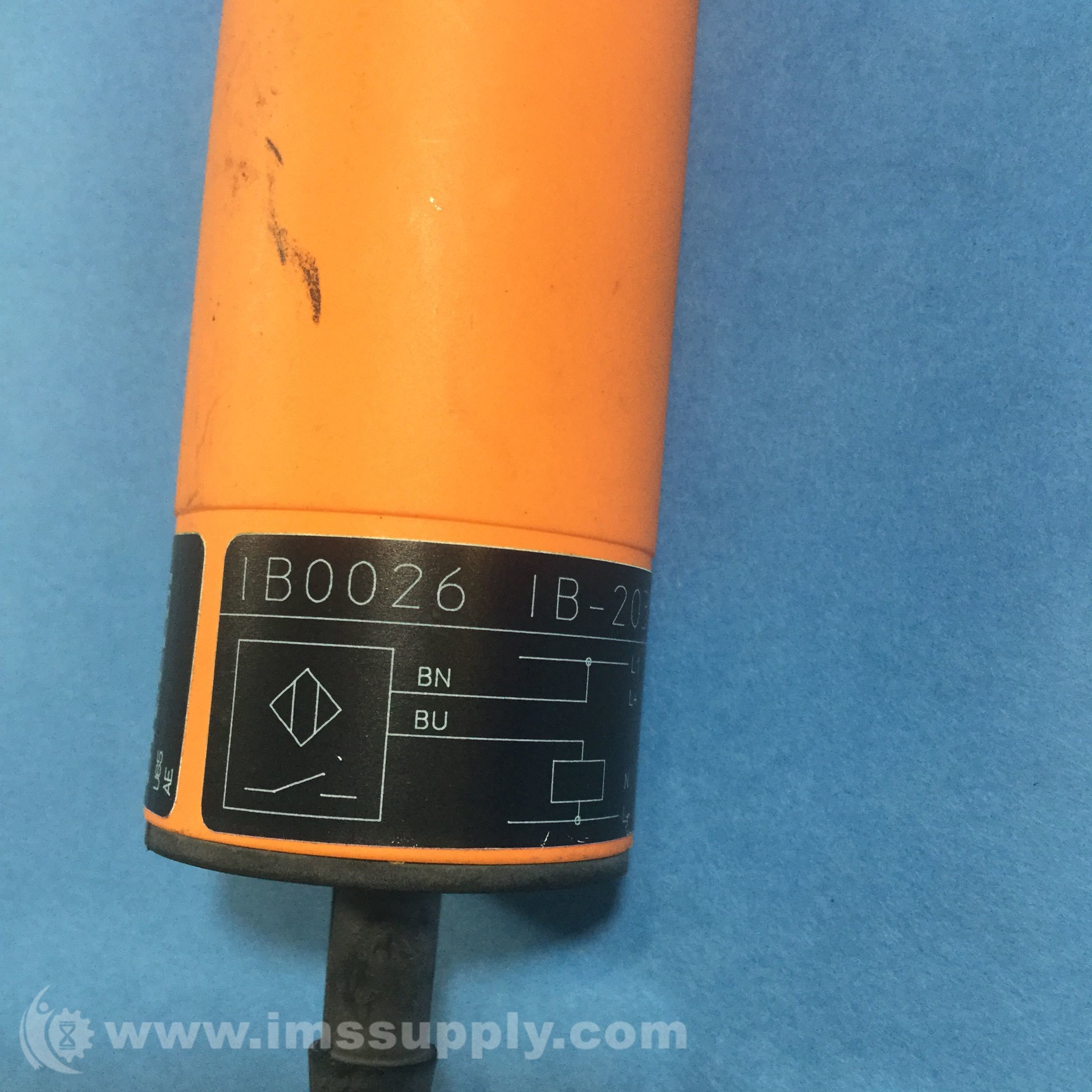

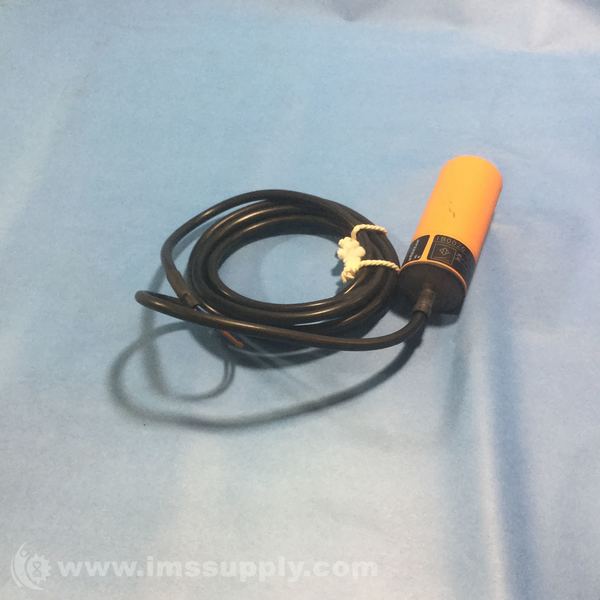

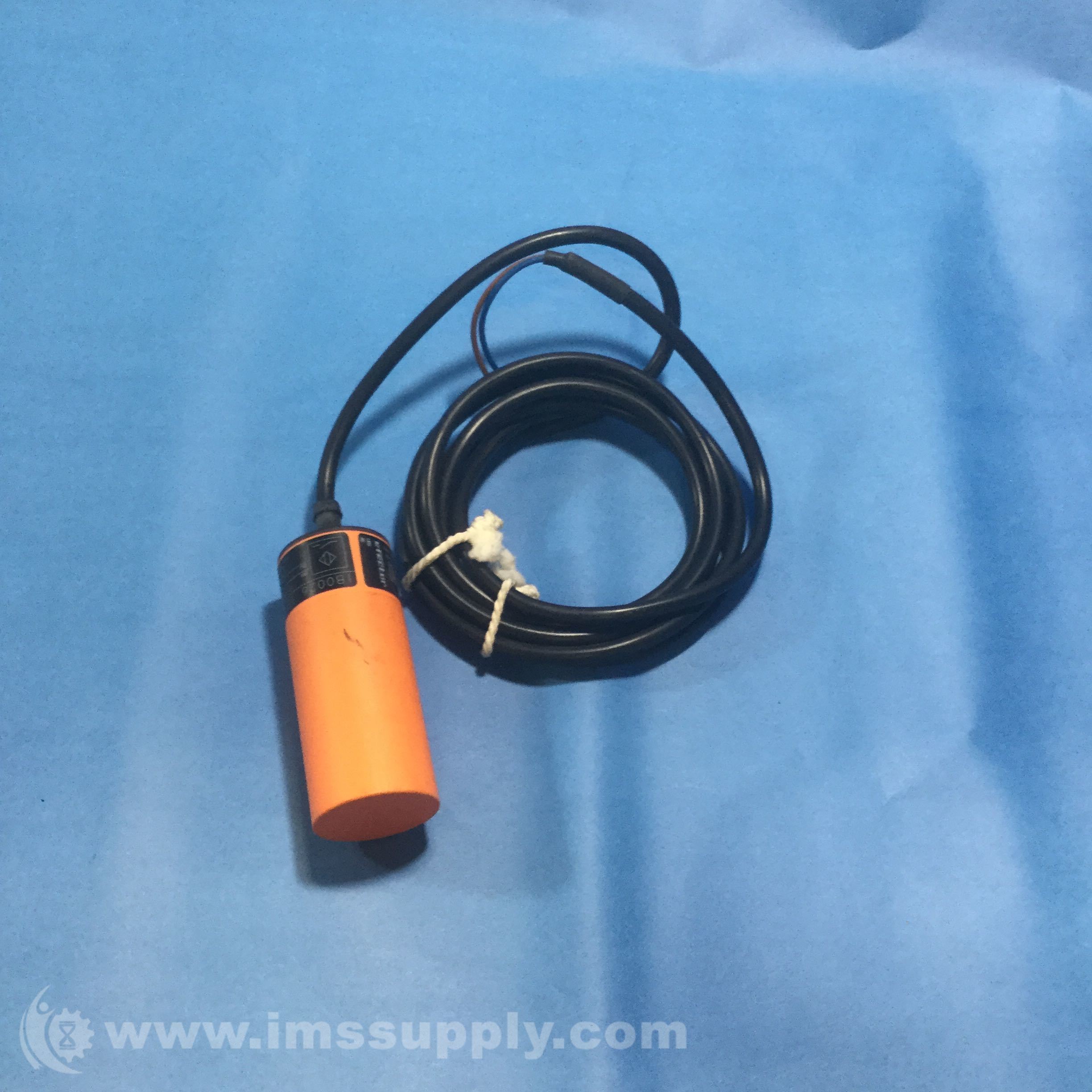

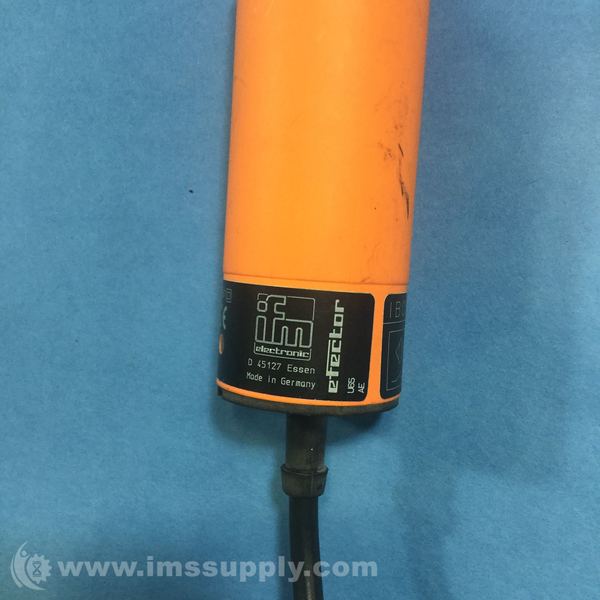

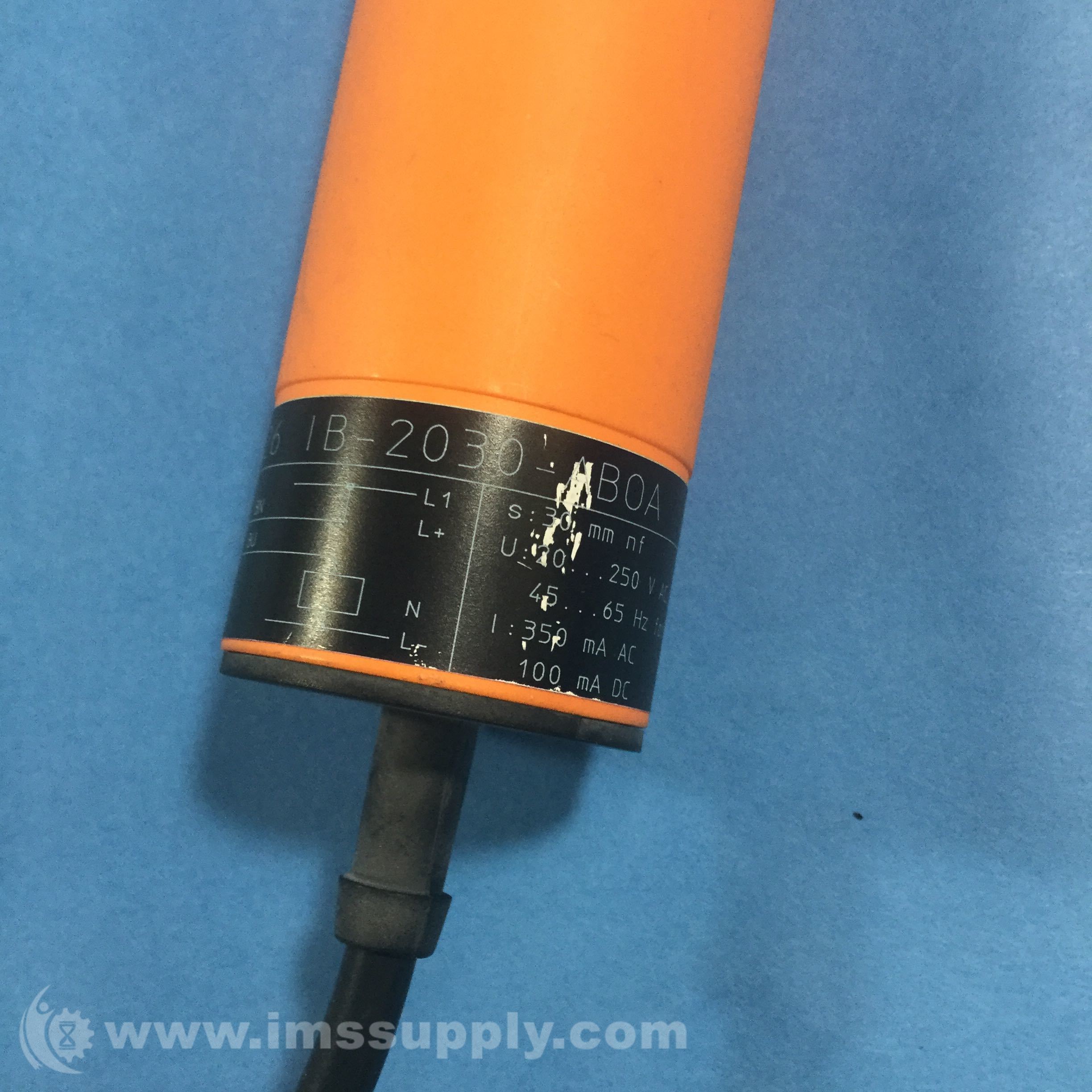

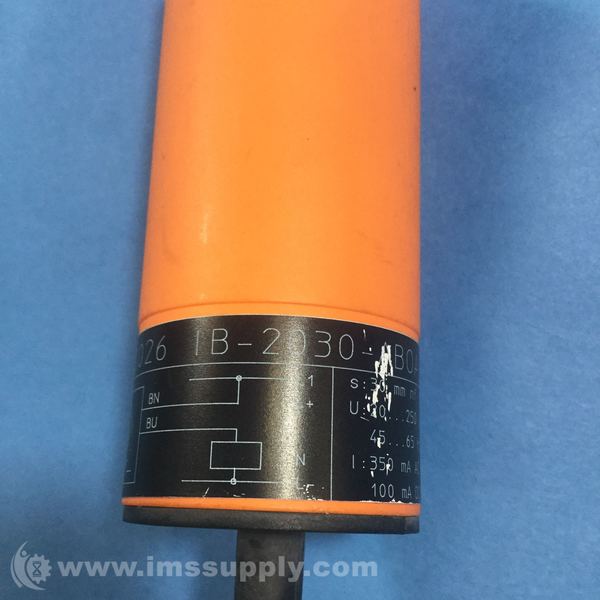

IFM EFECTOR 1B-2030-AB0A INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM EFECTOR
Manufacturer Part Number: 1B-2030-AB0A
IMS Product Code: 1810165
Packaging: Sold Individually
Description:
IFM Efector 1B-2030-AB0A Inductive Sensor (discontinued)
Specifications:
- Electrical data
- Operating voltage [V]: 20...250 AC/DC
- Protection class: II
- Reverse polarity protection: no
- Outputs
- Output function: normally open
- Max. voltage drop switching output DC [V]: 6
- Max. voltage drop switching output AC [V]: 6.5
- Minimum load current [mA]: 5
- Max. leakage current [mA]: 2.6 (250 V AC) / 1.4 (110 V AC) / 0.9 (24 V DC)
- Permanent current rating of switching output AC [mA]: 350
- Permanent current rating of switching output DC [mA]: 100
- Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
- Switching frequency AC [Hz]: 25
- Switching frequency DC [Hz]: 100
- Short-circuit protection: no
- Overload protection: no
- Monitoring range
- Sensing range [mm]: 30
- Real sensing range Sr [mm]: 30 ± 10 %
- Operating distance [mm]: 0...24.3
- Accuracy / deviations
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
- Hysteresis [% of Sr]: 1...15
- Switch-point drift [% of Sr]: -10...10
- Operating conditions
- Ambient temperature [°C]: -25...80
- Protection: IP 67
- Tests / approvals
- EMC
- EN 60947-5-2
- EN 55011 class B
- Mechanical data
- Housing: tubular
- Mounting: non-flush mountable
- Dimensions [mm]: Ø 34 / L = 82
- Material: PBT
- Displays / operating elements
- Display
- Switching status: 1 x LED, red
- Switching status: 1 x LED, green
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 18, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships on Monday, November 18, 2024
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
