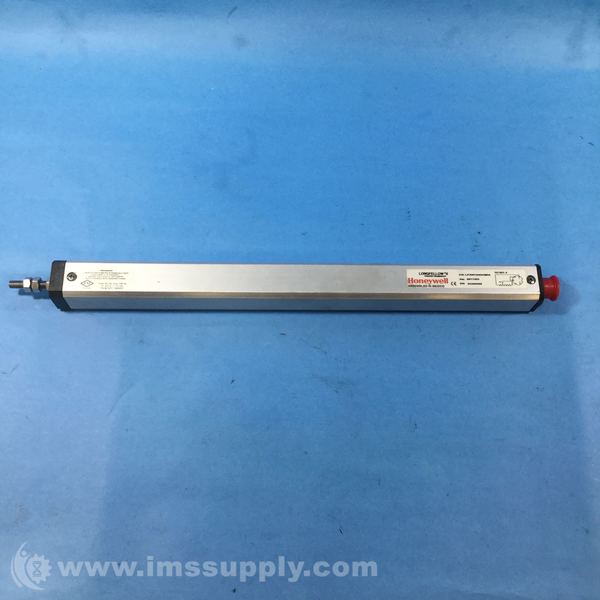

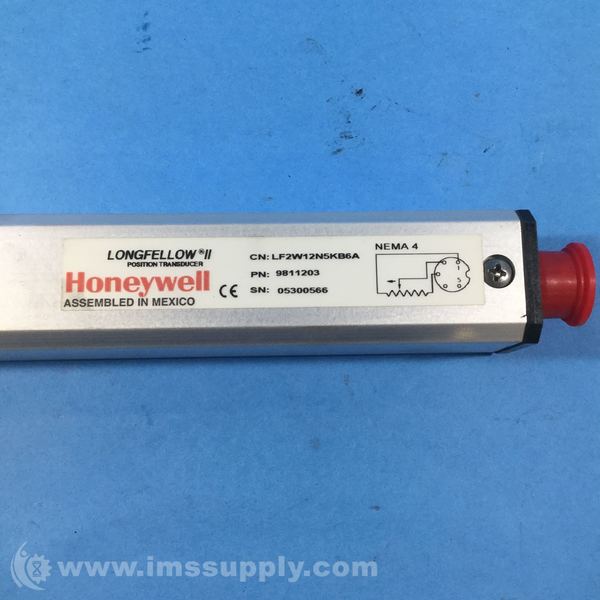

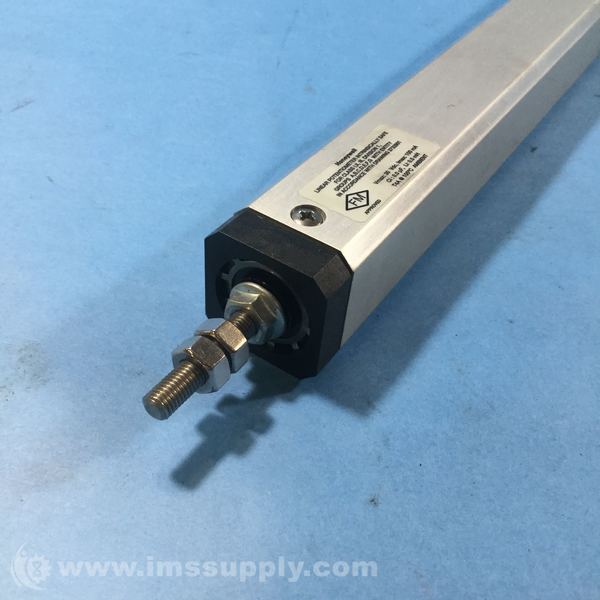

HONEYWELL 9811203 LONGFELLOW II POSITION TRANSDUCER
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: 9811203
IMS Product Code: 1802101
Packaging: Sold Individually
Description:
Honeywell 9811203 Longfellow II Position Transducer
Specifications:
- Function Level 1: Presence/Absence Speed and Positioning
- Function Level 2: Contacting
- Technology Level 1: Thick Film
- Supply Voltage: 30 Vdc max.
- Measurement Type: Linear
- Housing Size: 385,8 mm [15.19 in]
- Total Mechanical Travel: 307,0 mm [12.09 in]
- Electrical Travel: 304,8 mm [12.0 in]
- Starting Force (max.): 2,27 kg [5.0 lb]
- Linearity: ± 0.1 %
- Backlash: 0,025 mm [.001 in]
- Bearing Type: Sleeve
- Shaft Material: Stainless Steel
- Shaft Diameter: 1/4 in - 28 NF-2A thread
- Element Type: MystR® conductive plastic film
- Housing Type: Anodized Aluminum
- Termination: Binder Series 681
- Wiper Current: <1 µA
- Resolution: Infinite
- Operating Temperature: -65 °C to 105 °C [-85 °F to 221 °F]
- Vibration: 20 g / 0,75 mm (rms) 5 hz to 2 khz
- Shock: 50 g 11 ms half sine
- Operating Life: one billion dither operations
- Resistance: 5,000 Ohms
- Resistance Tolerance: ± 20 %
- Insulation Resistance: 1000 MOhm @ 500 Vdc
- Dielectric Strength: 1000 V rms
- Weight: 0,590 kg [1.3 lb]
- Sealing: NEMA 4 - Water Resistant
