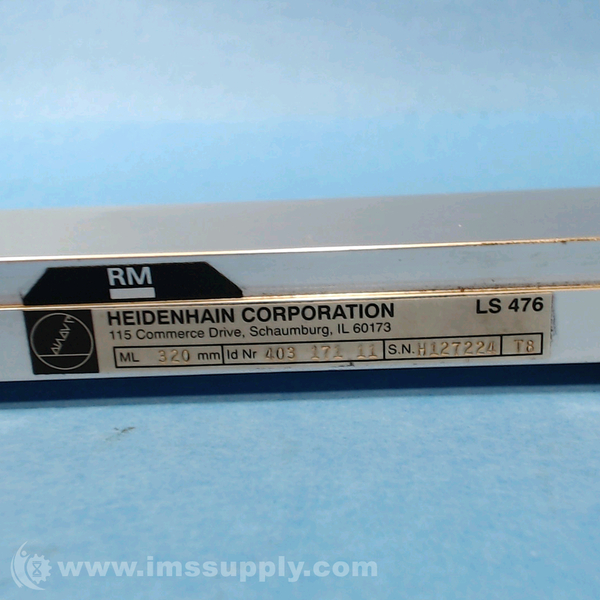

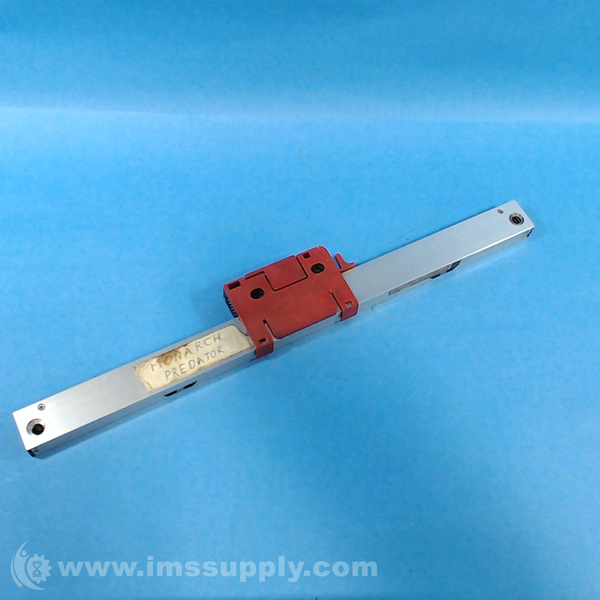

HEIDENHAIN CORP LS 476 LINEAR ENCODER
Quick Overview
Manufactured By: HEIDENHAIN CORP
Manufacturer Part Number: LS 476
IMS Product Code: 1730085
Packaging: Sold Individually
Description:
Measuring standard - DIADUR glass scale
Output signals - 5v TTL Quadrature
Signal period 4 um or 2 um
Accuracy grades - ± 5 µm, ± 3 µm (ML <= 1240 mm)
Recommended measuring steps - 1 µm, 0,5 µm
Measuring lengths - 70 mm to 2040 mm
Reference mark - One, two, or distance-coded
