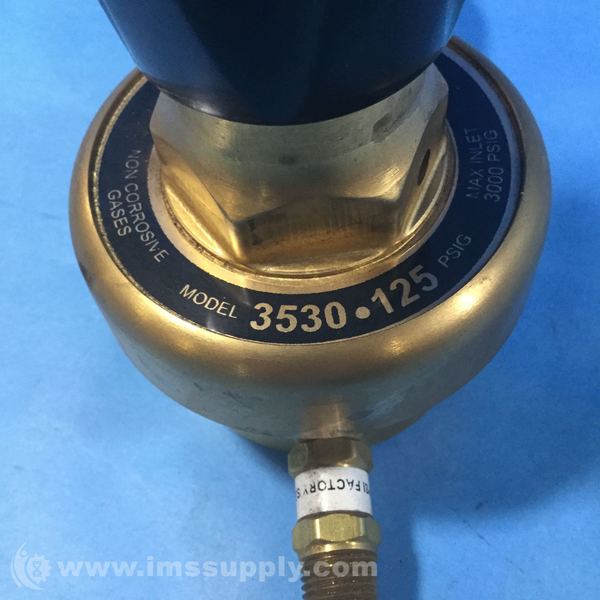

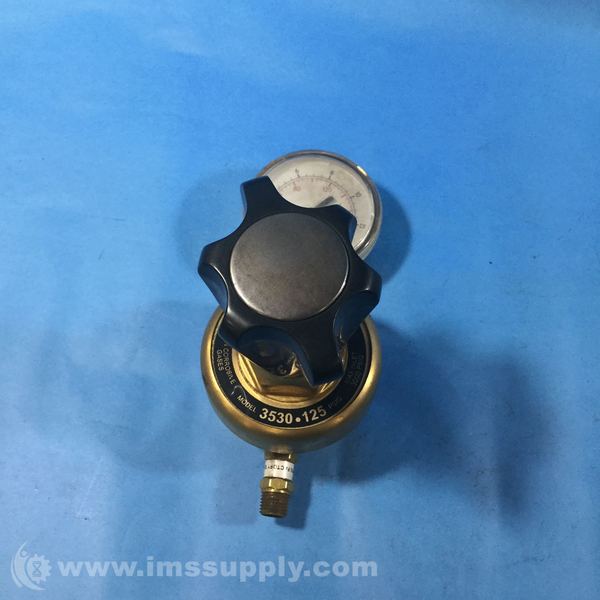

HARRIS 3530-125 PRESSURE REGULATOR, 0 - 125 PSIG

MSRP: $389.85
Starting At: $172.50

Quick Overview

Manufactured By: HARRIS
Manufacturer Part Number: 3530-125
IMS Product Code: 1809284
Packaging: Sold Individually

Description:

Harris 3530-125 Pressure Regulator, 1/2NPTF-IN/OUT Manifold Welding High Flow, 0 - 125 PSIG

Specifications:

  • Series: 3500
  • Brand Name: Harris
  • MFR Part Number: 3530-125 1/2NPTF-IN/OUT
  • UNSPSC: 41112404
  • Item: Manifold Pressure Regulator
  • Type: Compressed Gas, Ultra High Flow, In-Line, Single Stage
  • Series: HP3530
  • CGA/Inlet Size: 1/2 Inch (F)NPT
  • Outlet Size: 1/2 Inch (F)NPT
  • Delivery Pressure Range: 0 - 125 psig
  • Gas Service: Food Service and Laser
  • Gas Supply: Bulk Gas System and Pipeline
  • Coefficient of Volume: 0.55 Cv
  • Maximum Inlet Pressure: 3000 psig
  • Gauge Type: 2-1/2 Inch Brass Dual Scale (psi/bar)
  • Body Material: Brass Barstock
  • Bonnet Material: Brass Barstock
  • Diaphragm Material: 302 Stainless Steel
  • Nozzle Material: Brass
  • Seat Material: PTFE
  • Seal Material: PTFE
  • Filter Material: 10 micron Nickel Plated Sintered Bronze
  • Seat Return Spring Material: PH 17-7 Stainless Steel
  • Adjusting Knob Material: ABS Plastic
  • Dimensions: 5.54 Inch Length x 3.22 Inch Width x 6.26 Inch Height
  • Standard/Approvals: CGA E-4 Certified

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 1 In Stock

Ships today if ordered in the next 12 hours and 49 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Harris. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
