GAST 4AM-RV-75-GR25 AIR MOTOR, 1.7HP, REVERSIBLE, 200RPM
Quick Overview
Manufactured By: GAST

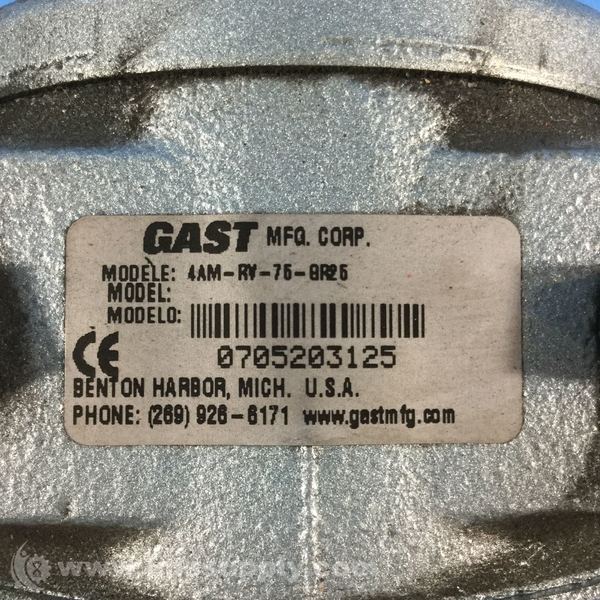

Manufacturer Part Number: 4AM-RV-75-GR25
IMS Product Code: 1780631
Packaging: Sold Individually
Description:

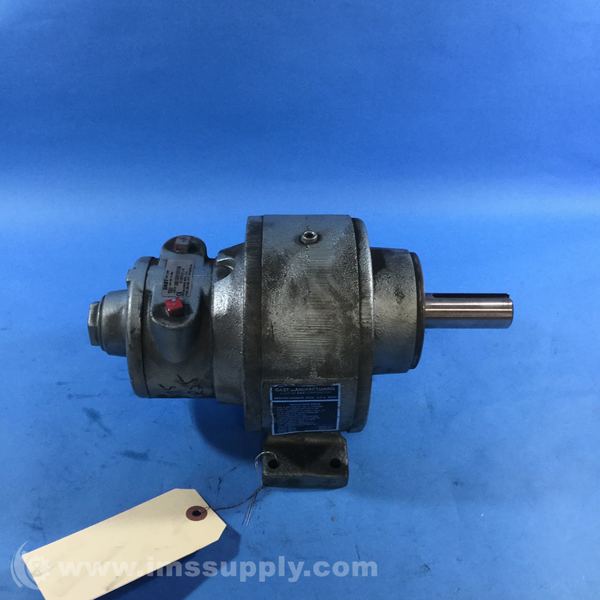

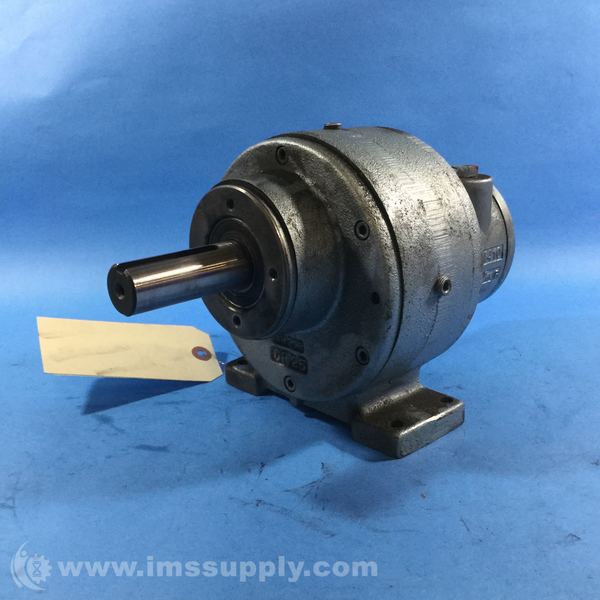

Gast 4AM-RV-75-GR25 Air Motor, 1.7HP, Reversible, 200RPM
Specifications:
- Motor Type: Air Motor
- Lubrication Type: Lubricated
- Maximum Power: 1.7 hp
- Rotation: Reversible
- Mounting Type: Face/Foot
- Air Consumption: 60.0 cfm
- Free Speed: 200 RPM
- Port Size: 1/4"
- Thread Standard: NPT
- Operating Pressure Range: Maximum of +80 psi
- Torque @ Max Speed: 400.0 in-lb
- Stall Torque: 650.0 in-lb
- Speed @ Max Torque: 20 RPM
- Operating Temperature Range: +1 to +120 °C
- Special Features: Air Cushioned Startup
- Standards Met: II GD c T4, EU Directive 2014/34/EU (ATEX 100a)
- Overall Length: 295 mm
- Overall Width: 155 mm
- Overall Height: 208 mm
