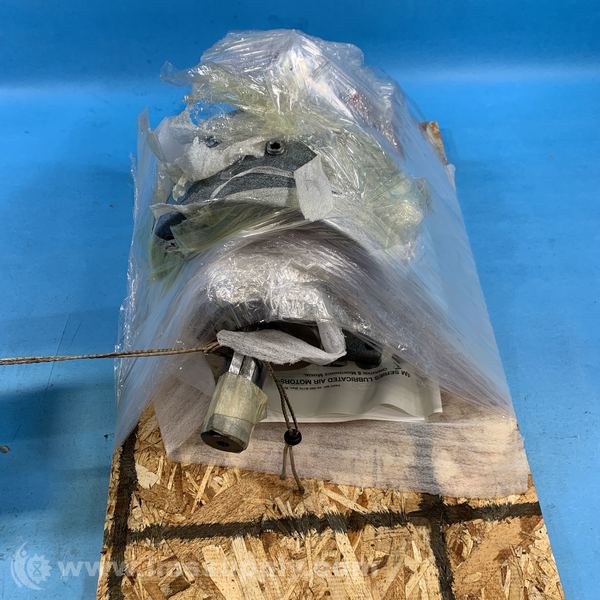

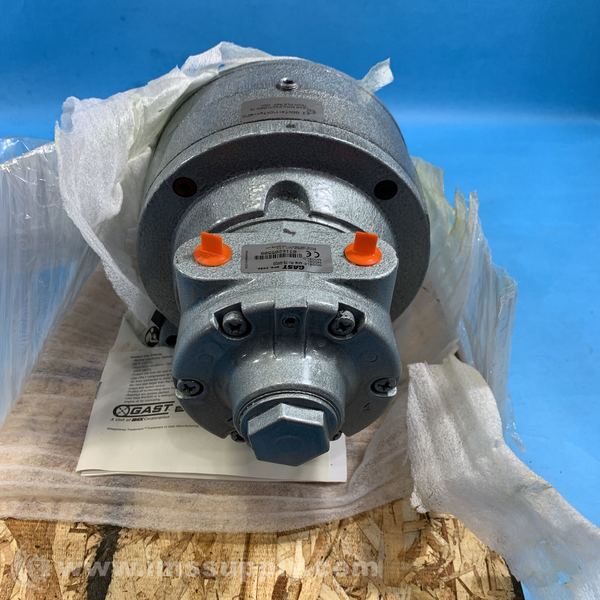

GAST 4AM-RV-75-GR20 AIR GEAR MOTOR, LUBRICATED, REVERSIBLE
Quick Overview
Manufactured By: GAST
Manufacturer Part Number: 4AM-RV-75-GR20
IMS Product Code: 1792588
Packaging: Sold Individually
Description:
Gast 4AM-RV-75-GR20 Air Gear Motor, Lubricated, Reversible, Max Power: 1.26hp
Specifications:
- Motor type: Air Gear Motor
- Operating pressure range: Maximum of +80 psig
- Lubrication type: Lubricated
- Torque @ max speed: 274 in·lb
- Maximum power: 1.26 hp
- Stall torque: 425 in·lb
- Rotation: Reversible
- Speed @ max torque: 30 RPM
- Mounting type: Face, Foot
- Operating temperature range: +1 to +120 °C
- Air consumption: 57.5 cfm
- Standards met: 2 GD c T4, EC Directive 94/9EC (ATEX 100a), EX II
- Gear ratio: 10:1
- Overall length: 293.6 mm
- Free speed: 300 RPM
- Overall width: 155.7 mm
- Port size: 1/4 in
- Overall height: 168.4 mm
- Thread standard: NPT
