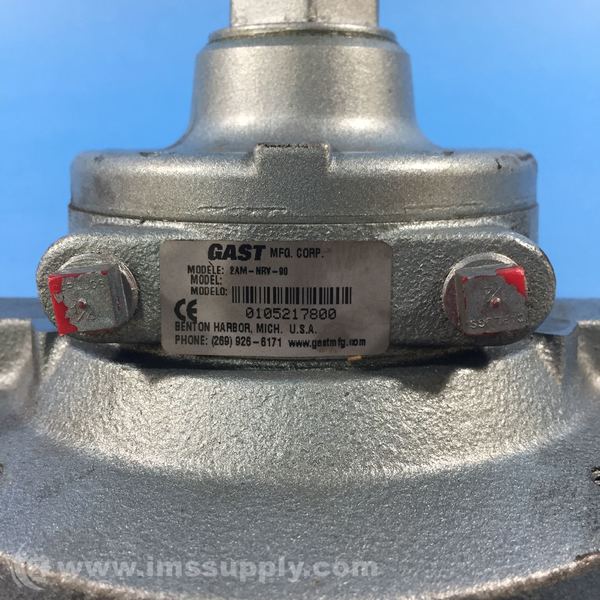

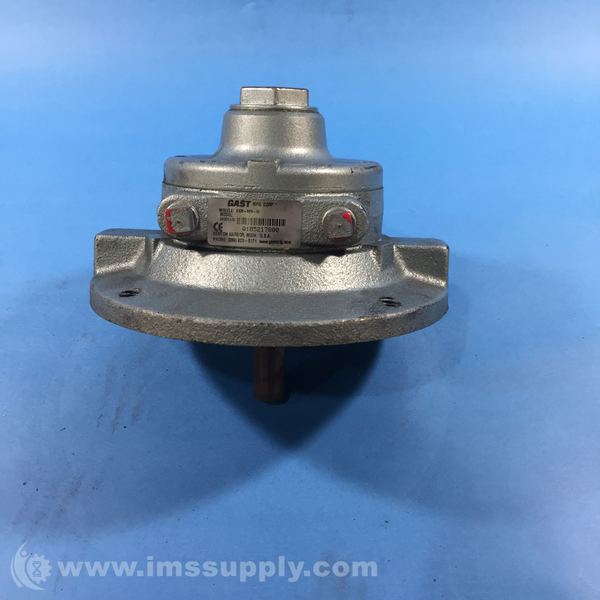

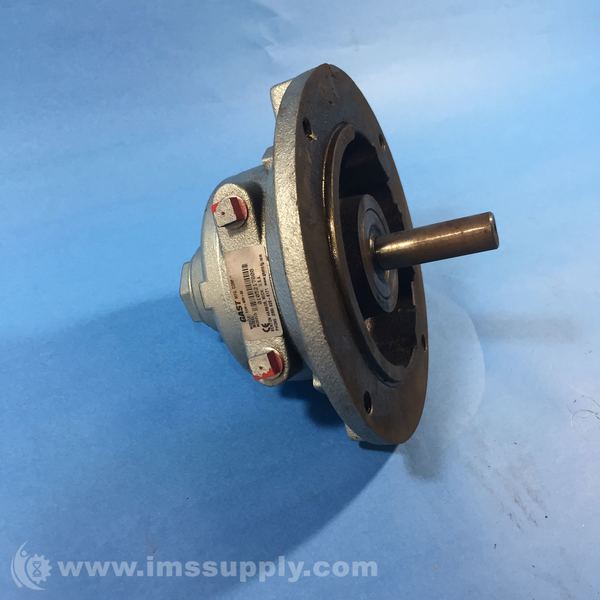

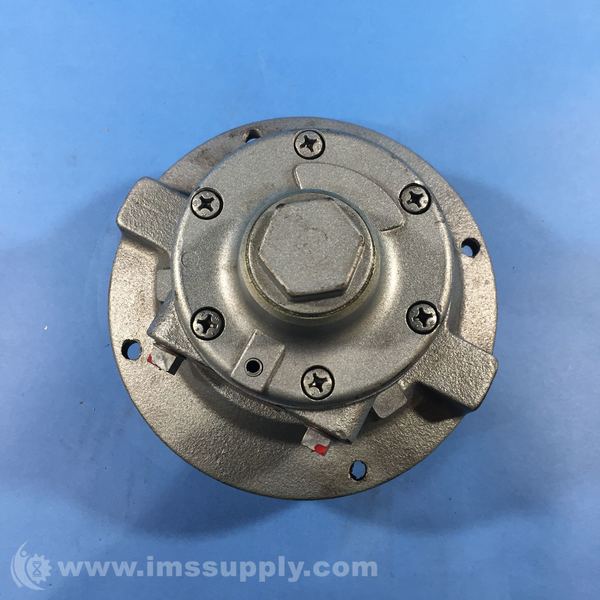

GAST 2AM-NRV-90 AIR MOTOR, 350RPM, 0.93HP
Quick Overview
Manufactured By: GAST
Manufacturer Part Number: 2AM-NRV-90
IMS Product Code: 1803474
Packaging: Sold Individually
Description:
GAST 2AM-NRV-90 Air Motor, 350RPM, 0.93HP
Specifications:
- Motor Type: Air Motor
- Lubrication Type: Lubricated
- Maximum Power: 0.93 hp
- Rotation: Reversible
- Mounting Type: Flange
- Air Consumption: 30 cfm
- Free Speed: 3,000 RPM
- Port Size: 1/4"
- Thread Standard: NPT
- Operating Pressure Range: Maximum of +100 psi
- Torque @ Max Speed: 19.5 in·lb
- Stall Torque: 26.1 in·lb
- Speed @ Max Torque: 350 RPM
- Operating Temperature Range: +1 to +120 °C
- Special Features: Air Cushioned Startup
- Standards Met: 2 GD c T4, EC Directive 94/9EC (ATEX 100a), EX II
- Overall Length: 165.1 mm
- Overall Width: 165.1 mm
- Overall Height: 149.1 mm
