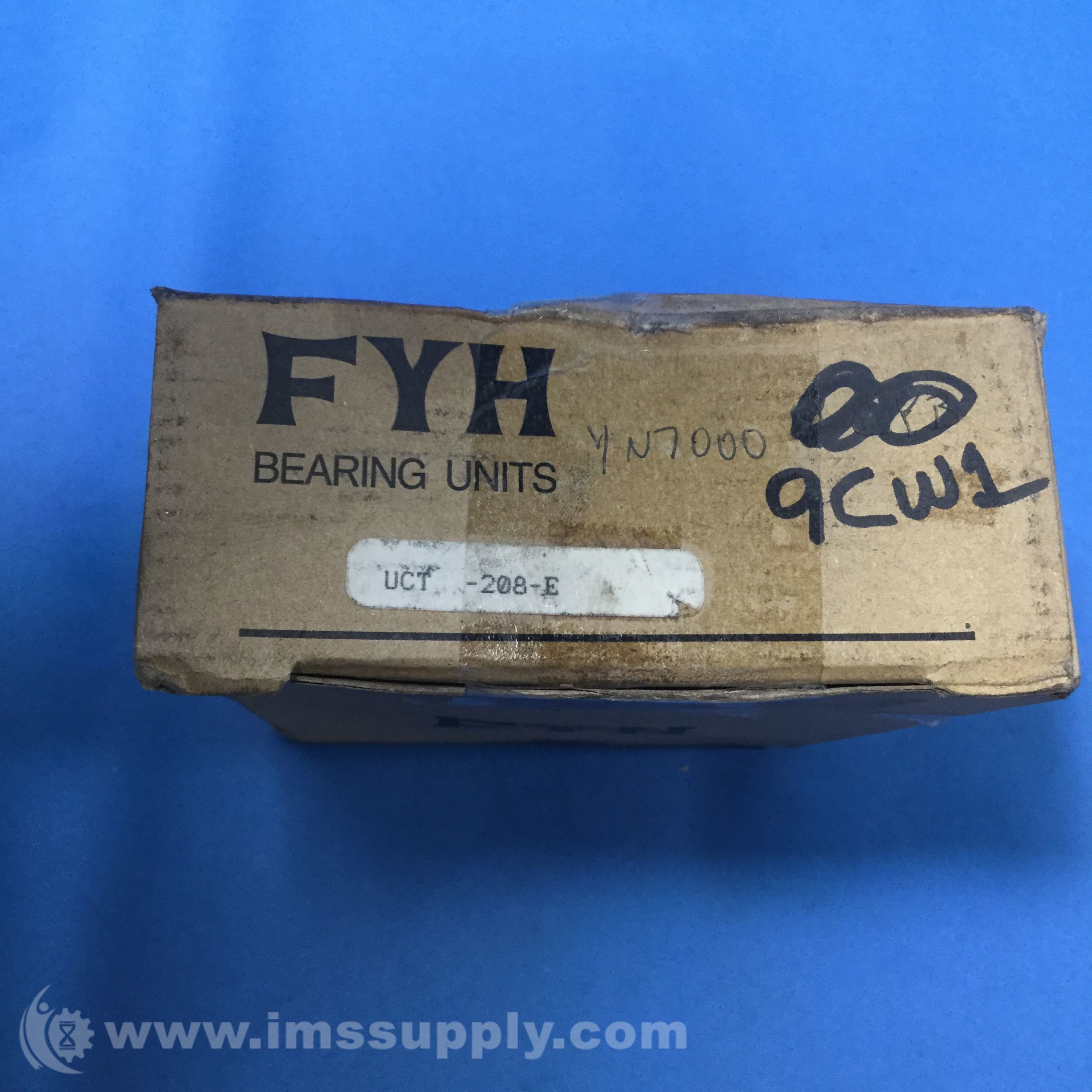

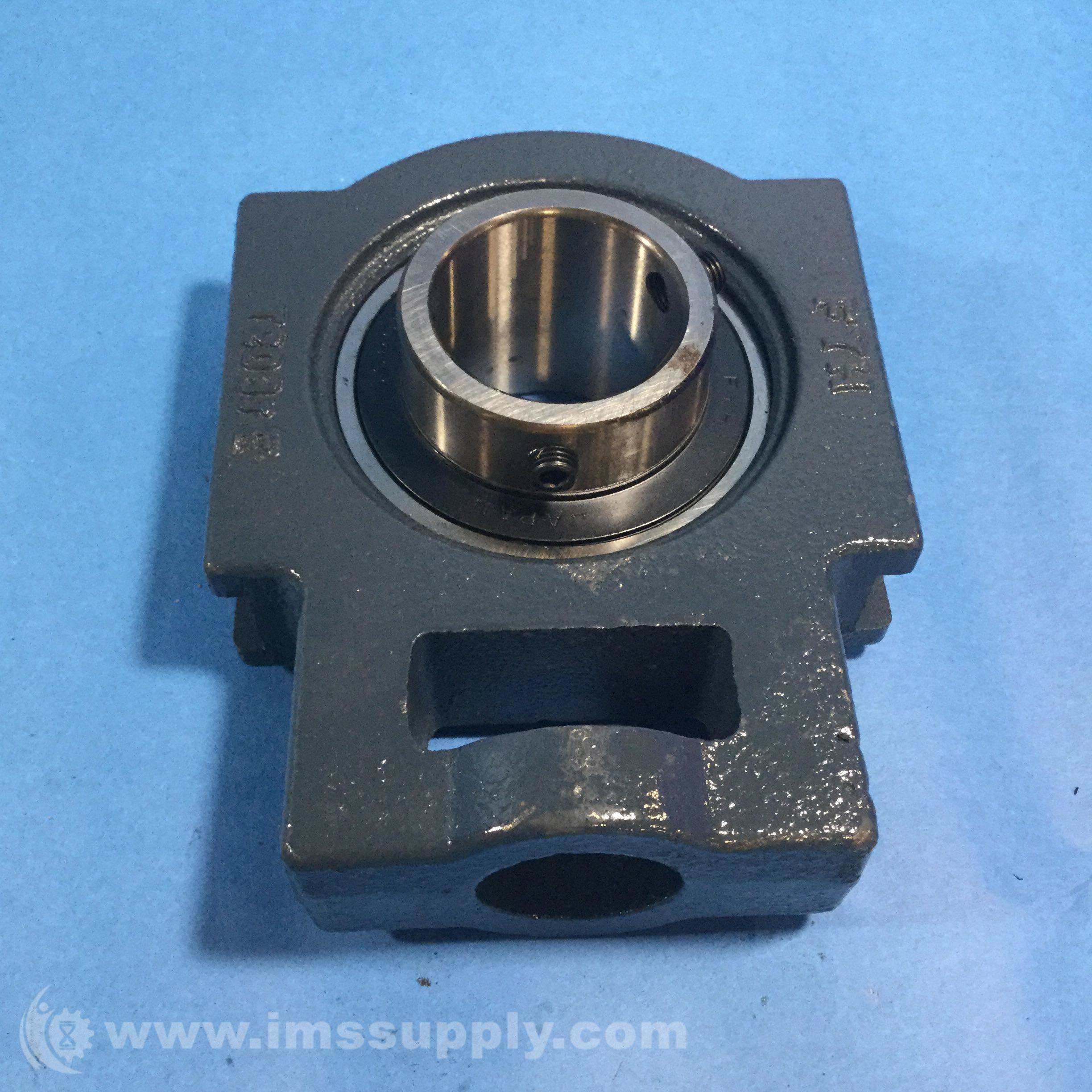

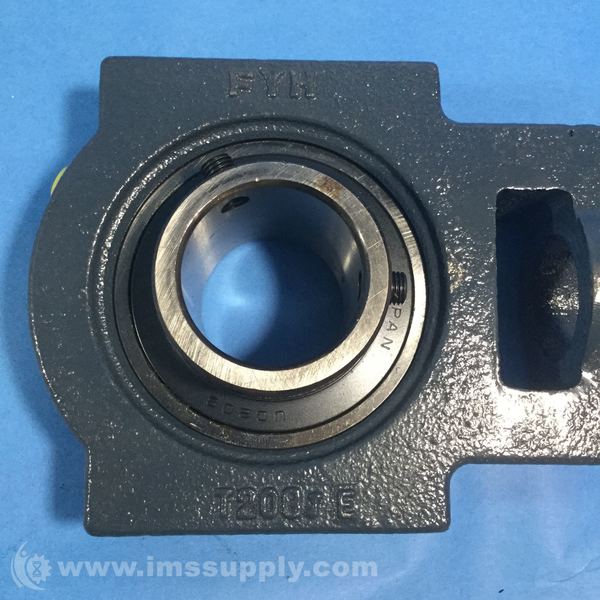

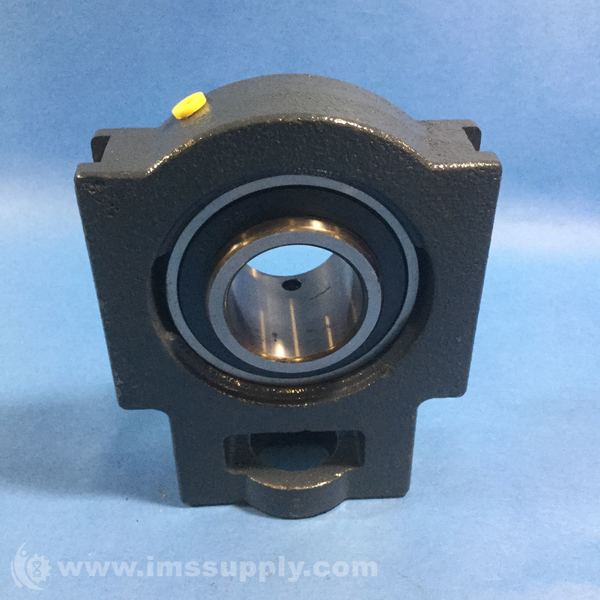

FYH UCT-208-E TAKE-UP UNIT, 40MM BORE DIA., SET SCREW

MSRP: $33.95
Starting At: $17.25

Quick Overview

Manufactured By: FYH, INC.
Manufacturer Part Number: UCT-208-E
IMS Product Code: 1809121
Packaging: Sold Individually

Description:

FYH UCT-208-E Take-Up Unit, 40MM Bore Dia., Set Screw

Specifications:

  • Dynamic Load Rating (N): 29100
  • Static Load Rating (N): 17800
  • Bearing No.: UC208
  • Locking Type: Set Screw
  • Max Speed / Oil (RPM): 3300 RPM
  • Length: 5.67"
  • Width: 4.49"
  • Height: 2.15"
  • Inner Ring: Wide
  • Description: Take-Up Unit
  • Duty: Normal
  • Standard Housing NO.: T208E
  • Housing Material: Cast Iron
  • Type: Mounted Ball Bearing
  • Temperature Range: °F-4 To 212°F
  • Bore Diameter: 40MM
  • Shaft Diameter: 40MM










New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 1 In Stock

Ships today if ordered in the next 12 hours and 39 minutes.

Used:
A previously used, fully functional product that may have some signs of cosmetic wear.

Availability: 1 In Stock

Ships today if ordered in the next 12 hours and 39 minutes.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of FYH, Inc.. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
