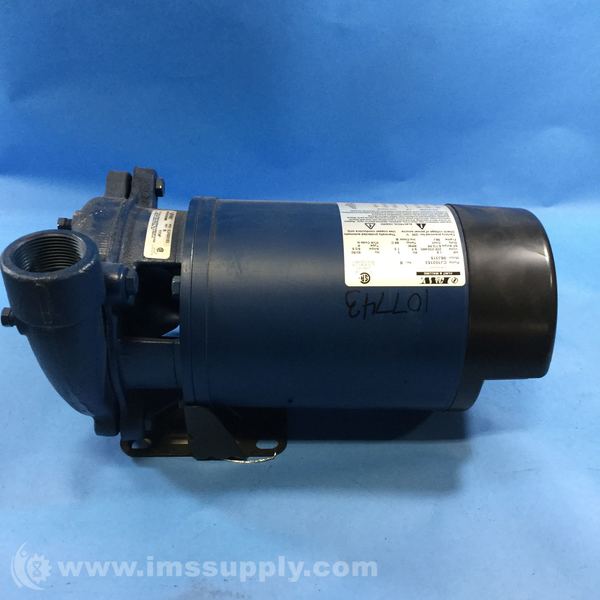

FLINT AND WALLING CJ103153 BOOSTER PUMP, 1-1/2 HP, 3-PHASE
Quick Overview
Manufactured By: FLINT AND WALLING
Manufacturer Part Number: CJ103153
IMS Product Code: 1792728
Packaging: Sold Individually
Description:
Flint and Walling CJ103153 Booster Pump, 1-1/2 HP, 3-Phase
Specifications:
- Item: Booster Pump
- Motor Enclosure: ODP
- Height: 3-5/16"
- Frame: NEMA 56J
- Wetted Materials: Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
- For Use With: Nonflammable Liquids Compatible with Pump Component Materials
- GPM @ 35 PSI: 47
- Amps: 5.7/2.85
- Inlet (In.): 1-1/2 FNPT
- Bearing Type: Ball
- GPM @ 30 PSI: 68
- Motor RPM: 3450/2875
- Phase: 3
- Outlet: 1-1/4" (F)NPT
- Housing Material: Cast iron
- Stages: 1
- Length: 15-1/8"
- GPM @ 20 PSI: 88
- Impeller Material: Brass
- HP: 1-1/2
- Agency Compliance: CSA, CUS, UL Listed
- Inlet: 1-1/2" (F)NPT
- Includes: 1/4" Drain Plug, Discharge Rotates In 90 Degree Increments
- GPM @ 25 PSI: 80
- Motor Ambient Temp. Rating: 65 Degrees C/149 Degrees F
- Max. Case Pressure: 100 psi
- GPM @ 40 PSI: 27
- Duty: Continuous
- Seal Material: Stainless Steel, Buna N and Carbon/Silicon Carbide
- Max. Pressure: 43 psi
- Voltage: 208-230/460
- Impeller Type: Closed
- Width: 8-1/4"
- Hz: 60/50
- Motor Type: ODP
