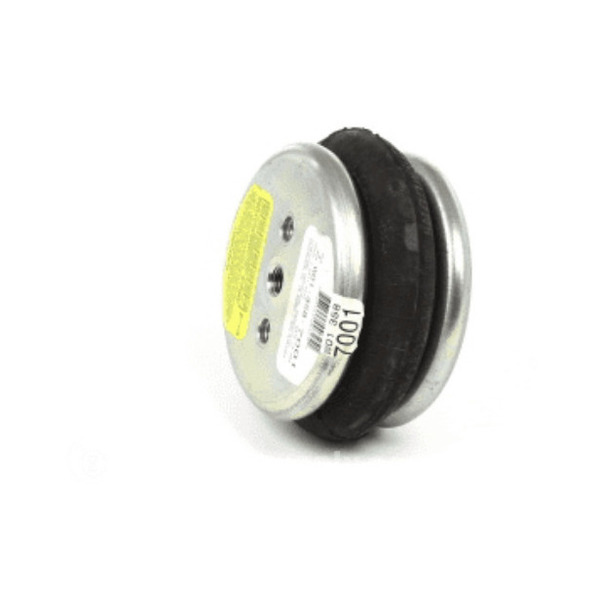

FIRESTONE W01-358-7001 SINGLE CONVOLUTED AIR SPRING
Quick Overview
Manufactured By: FIRESTONE
Manufacturer Part Number: W01-358-7001
IMS Product Code: 1808732
Packaging: Sold Individually
Description:
Firestone W01-358-7001 Single Convoluted Air Spring
Specifications:
- Airmount / Airstroke Actuator
- 16B Style Air Spring
- Type 1 Bead Plate
- (2) 3/8-16 Blind Nuts On 1.75" Centers
- 1/4" NPT Centered Port
- 16B 2BN 1/4NPT CTR.
- Maximum Diameter @ 100 PSIG (inches): 6
- Maximum Height (inches): 3.3
- Maximum Stroke (inches): 1.4
- Minimum Usable Height (inches): 1.9
- 1 Inch (pounds): 930
- Maximum Stroke (pounds): 580
- Material: 2-Ply Standard Cord
- Bead plate Type: 1
- Blind Nut Centers (inches): 1.75
- Design Height: 3
- 40 psig (pounds): 420
- 60 psig (pounds): 640
- 80 psig (pounds): 880
- Natural Frequency (@80 psig) (cpm): 237
- 800 CPM %: 90.3
- 1500 CPM %: 97.4
