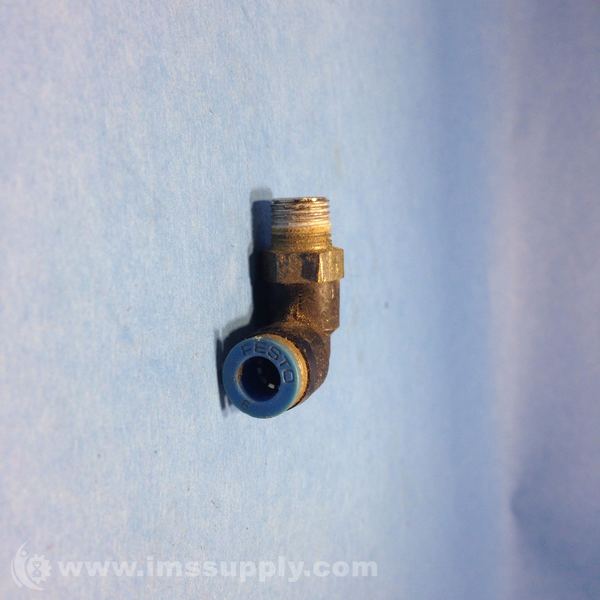

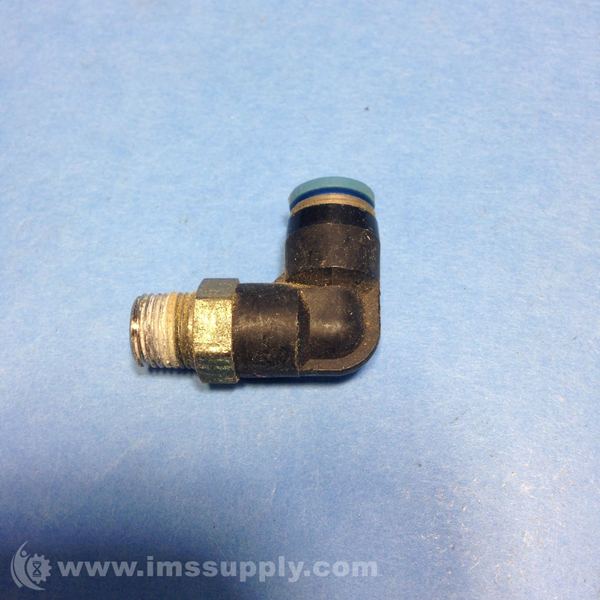

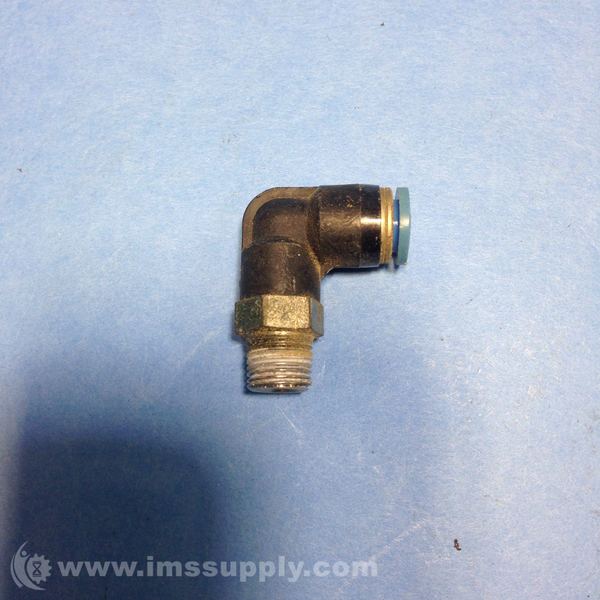

FESTO QSL-1/8-6 PUSH-IN L-FITTING QSL-1/8-6 (1PC)
Starting At: $0.86
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: QSL-1/8-6
IMS Product Code: 1749877
Packaging: Sold Individually
Description:
Nominal size: 4.2 mm
Type of seal on screw-in stud: coating
Assembly position: Any
Design structure: Push/pull principle
Operating pressure complete temperature range: -0.95 ... 6 bar
Temperature dependent operating pressure: -0.95 ... 14 bar
Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium: Lubricated operation possible
Corrosion resistance classification CRC: 1
Ambient temperature: -10 ... 80 °C
Authorisation: Germanischer Lloyd
Product weight: 11 g
Pneumatic connection, port 1: Male thread R1/8
Pneumatic connection, port 2: for tubing, 6 mm outside diameter
Colour of release ring: blue
Materials note: Conforms to RoHS
Materials information, housing: PBT
Release ring material data: POM
Materials information for tubing seal: NBR
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 24 In Stock
