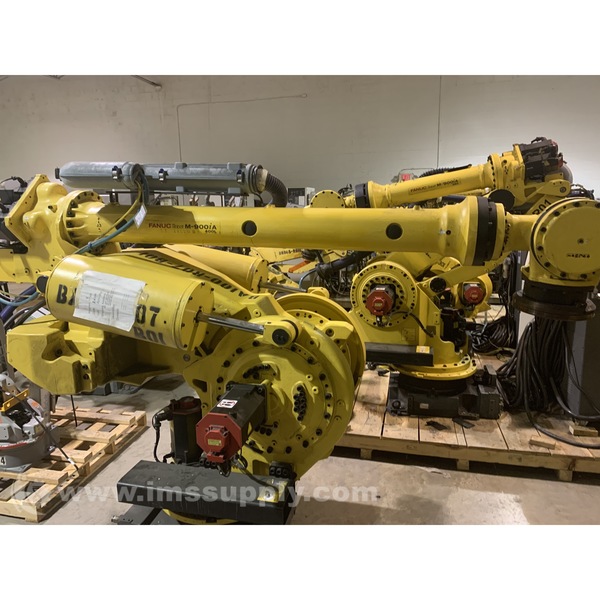

FANUC M900IA/400L ROBOT & CONTROLLER W/ PENDANT
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: M900IA/400L
IMS Product Code: 1856154
Configuration: Robot & Controller w/ Pendant
Unspecified
Configuration: Robot & Controller w/ Pendant
Packaging: Sold Individually
Description:
Fanuc M900iA/400L Robot & Controller w/ Pendant
Specifications:
- Axes: 6
- Payload: 400 kg
- H-Reach: 3625 mm
- Repeatability: ± 0.5 mm
- Robot Mass: 3150 kg
- Structure: Articulated
- Mounting: Floor
Robot Motion Speed:
J1...... 80°/s (1.4 rad/s)
J2...... 80°/s (1.4 rad/s)
J3...... 80°/s (1.4 rad/s)
J4...... 100°/s (1.75 rad/s)
J5...... 100°/s (1.75 rad/s)
J6...... 160°/s (2.79 rad/s)
Robot Motion Range:
J1...... ±360°
J2...... ±154°
J3...... ±160°
J4...... ±720°
J5...... ±244°
J6...... ±720°
ROBOT APPLICATIONS:
Material Handling
Part Transfer
Pick and Place
FANUC M-900iA/400L is a long reach, floor mounted industrial robot that is ideal for heavy
material handling applications. The M-900iA/400L can handle up to 400 kg! Its IP67 rated wrist
is designed to perform in even the harshest environments. It offers very reliable servo drives that
help to provide your production line with the very most uptime and productivity. The robust
design of the FANUc M900iA/400L also helps to decrease down time and improve the mean
time between failure. The FANUC M-900iA/400L can be paired with the R-30iA controller.
