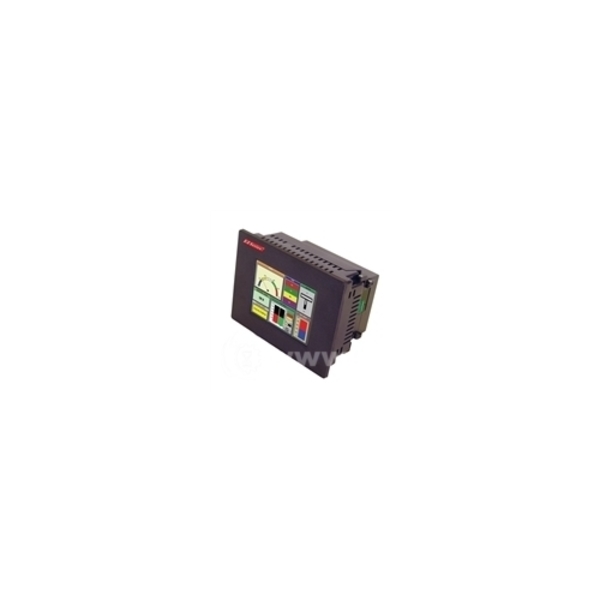

EZ3-T6C-E-24-8-8R-4AI4AOV, 5.7" TFT COLOR TOUCHSCREEN
Quick Overview
Manufactured By: EZ AUTOMATION
Manufacturer Part Number: EZ3-T6C-E-24-8-8R-4AI4AOV
IMS Product Code: 1757986
Packaging: Sold Individually
Description:
5.7” TFT Color Touchscreen, Fixed I/O PLC, 24 DC Inputs, 8 DC Outputs, 8 Relay Outputs, 4 Analog In, 4 Analog Out (voltage), Ethernet, USB & micro SD Card slot
Features
- 5.7” color TFT Touchpanel, 65K colors
- 75,000 hour bulb half-life (White LED)
- NEMA 4, FDA compliant material
- 320x240 pixel resolution
- Application Memory: 2MB
- USB Type A - Data log, backup & more
- USB Type B - Programming
- Micro SD Card - Data logging
- Ethernet - Remote Access (PC, iOS, Android)
- 4.4” (111.8mm) installed depth
- Fixed I/O PLC
- Total Program/Data Memory 64KB
- 3ms Scantime for 1K Instruction
- Built-in I/O: 24 DC In, 8 DC Out, 8
- Relay out with NO/NC contacts
- 4 Analog In, 4 Analog Out (voltage 0-10V)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
