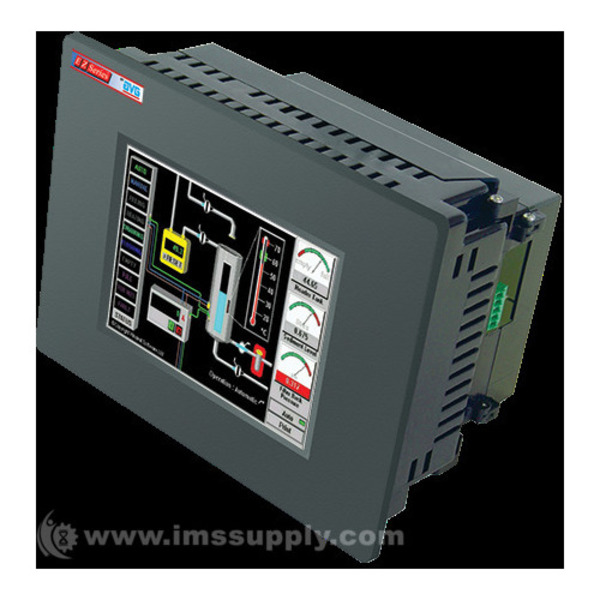

EZ3-T6C-E-16-8R, 5.7" TFT COLOR TOUCHSCREEN, FIXED I/O PLC
Quick Overview
Manufactured By: EZ AUTOMATION
Manufacturer Part Number: EZ3-T6C-E-16-8R
IMS Product Code: 1757979
Packaging: Sold Individually
Description:
5.7" TFT Color Touchscreen, Fixed I/O PLC, 16 DC Inputs (2 Inputs configurable to accept 20 KHz high speed signals), 8 Relay Outputs, RS485 connector, Ethernet, USB & micro SD Card slot
Features
- 5.7” color TFT Touchpanel, 65K colors
- 75,000 hour bulb half-life (White LED)
- NEMA 4, FDA compliant material
- 320x240 pixel resolution
- Application Memory: 2MB
- USB Type A - Data log, backup & more
- USB Type B - Programming
- Micro SD Card - Data logging
- Ethernet - Remote Access (PC, iOS, Android)
- 4.4” (111.8mm) installed depth
- Fixed I/O PLC
- Total Program/Data Memory 64KB
- 3ms Scantime for 1K Instruction
- Built-in I/O: 16 DC In, 8 Relay out with NO/NC contacts (10 Amp Form C Relays)
- Auto-tune PID, 8 independent loops
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 5 to 7 Days
