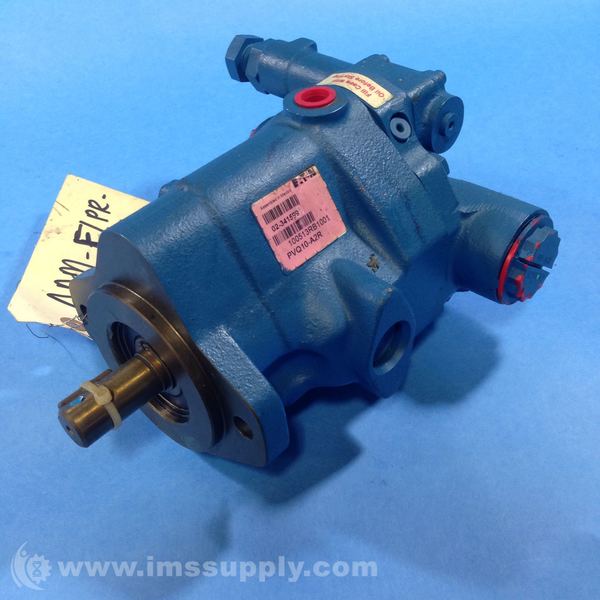

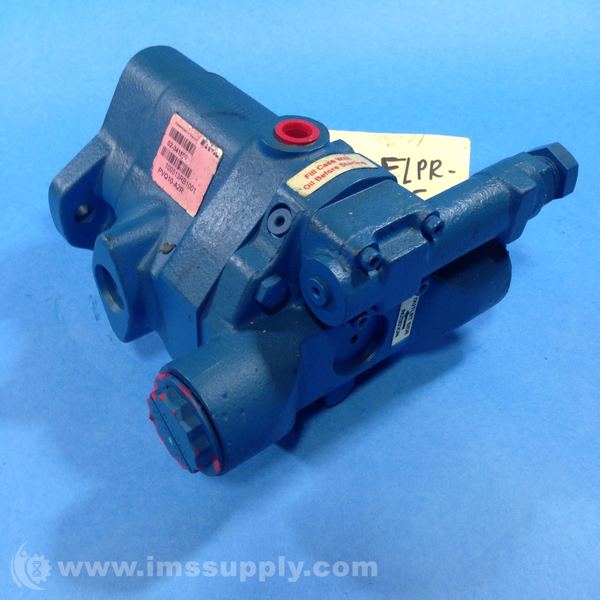

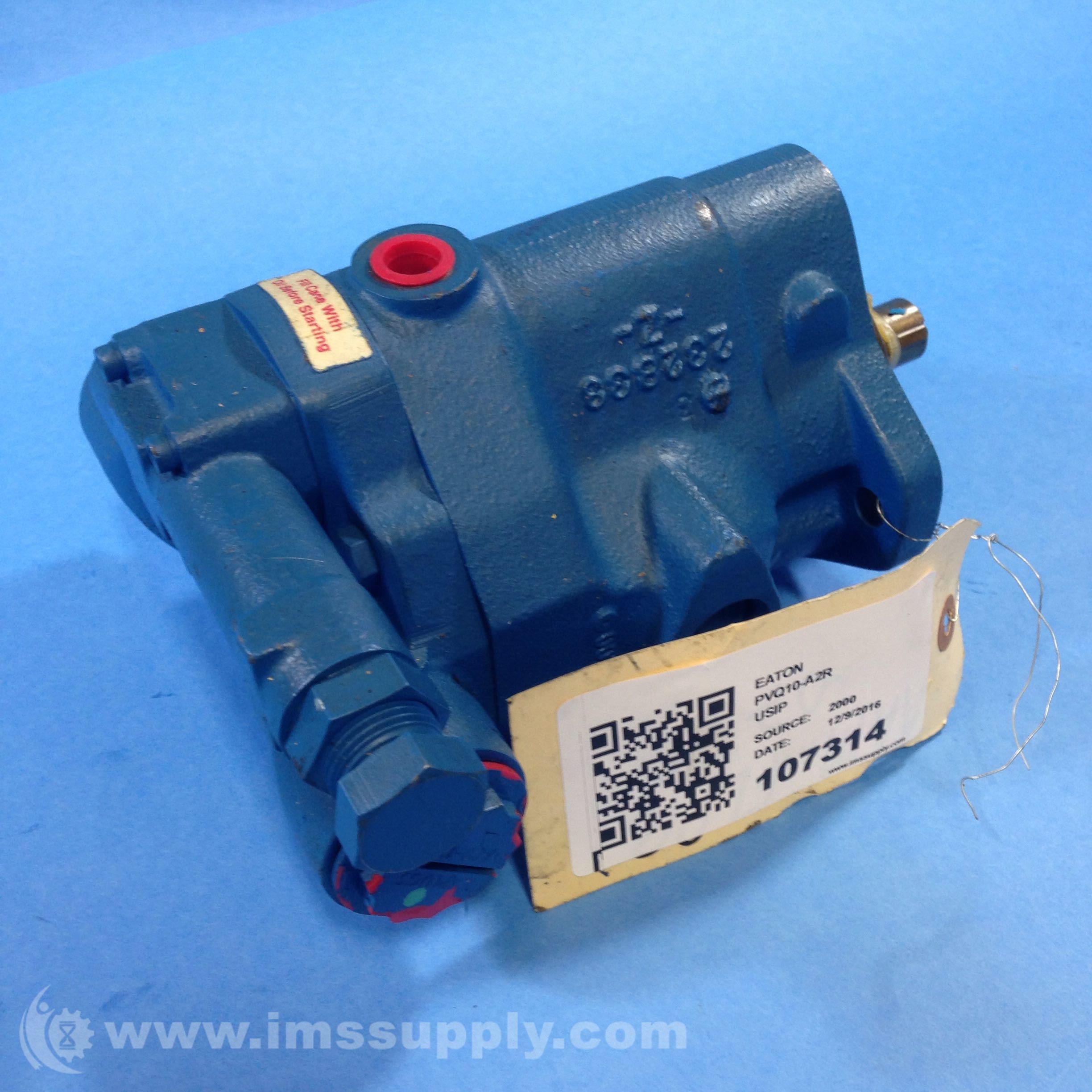

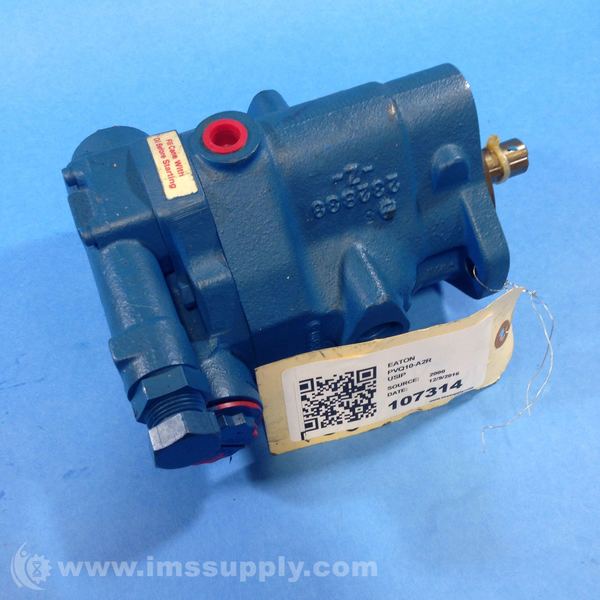

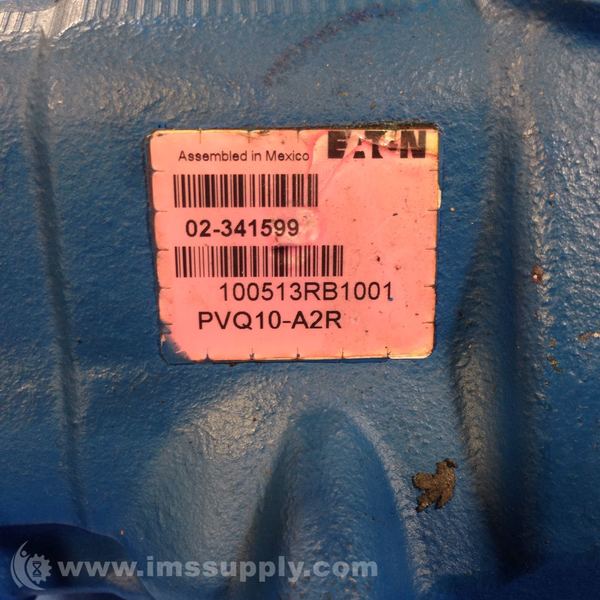

EATON PVQ10-A2R VARIABLE DISPLACEMENT HYDRAULIC AXIAL PISTON PUMP
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: PVQ10-A2R
IMS Product Code: 1735506
Packaging: Sold Individually
Description:
Eaton PVQ10-A2R Variable Displacement Hydraulic Axial Piston Pump
Specifications:
- Series: PVQ
- Displacement: 0.64 in³/r
- Pump Application: Industrial
- Input Rotation: Right Hand Rotation
- Input Shaft Type: SAE A Straight Keyed
- Mounting Type: SAE Flange
- Maximum Flow Rate: 5 gpm
- Port Location: Rear Ported
- Port Size: SAE 1-1/16-12 UN-2B"
- Max Volume Stop: Without Max Volume Stop
- Pressure Compensator Control Type: Pressure Compensator Modified for Hydraulic Remote Control
- Pressure Compensator Range: Maximum of 3000 psi
- Flow Compensator Range: None
- Maximum Operating Pressure: 3000 psi
- Maximum RPM: 1,800 RPM
- Displacement Type: Variable
- Maximum Operating Temperature: +130 °F
- Connection Gender: Female
- Overall Height: 131.5 mm
- Overall Length: 221.4 mm
- Overall Width: 226.4 mm
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged EATON PVQ10-A2R VARIABLE DISPLACEMENT HYDRAULIC AXIAL PISTON PUMP. Contact us today for details.
Repair Time Estimates Provided In Quote
