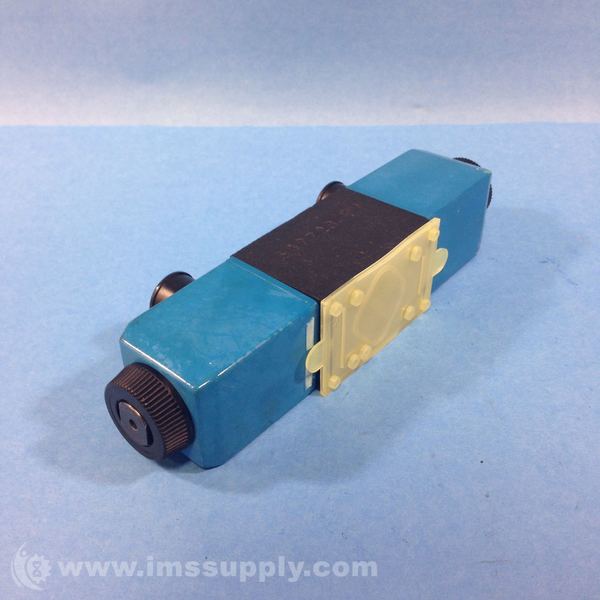

EATON DG4V-3S-2N-M-U-H5-60 SOLENOID OPERATED DIRECTIONAL VALVE
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: DG4V-3S-2N-M-U-H5-60
IMS Product Code: 1733731
Packaging: Sold Individually
Description:
| Actuation Type: | Solenoid |
| Performance Specification: | Standard Performance |
| Valve Size: | D03 |
| Maximum Flow Rate: | 10.5 gpm |
| Maximum Operating Pressure: | 5075 psi |
| Coil Voltage: | 24 V dc |
| Spool Type: | Closed Center (P Only) |
| Spool/Spring Arrangement: | Spring Centered |
| Mounting Type: | Manifold, Subplate |
| Flow Direction: | 4-Way |
| Electrical Connection: | ISO 4400 (DIN 43650) Mounting |
| Design Number: | 60 (Basic) |
| T Port Pressure Rating: | 100 bar (1500 psi) |
| Valve Application: | Industrial |
| Maximum Ambient Temperature: | +158 °F |
| Maximum Operating Temperature: | +158 °F |
| Minimum Operating Temperature: | -4 °F |
| Overall Height: | 87 mm |
| Overall Width: | 48 mm |
| Overall Length: | 220 mm |
