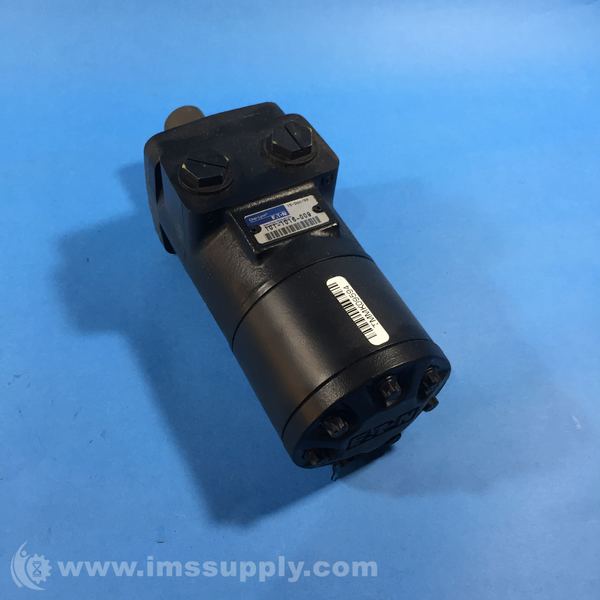

EATON 101-1016-009 HYDRAULIC MOTOR, GEROTOR
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: 101-1016-009
IMS Product Code: 1804091
Packaging: Sold Individually
Description:
Eaton 101-1016-009 Hydraulic Motor, Gerotor
Specifications:
- Displacement: 22.60 in³/r
- Maximum Rpm-Continuous: 152 rpm
- Continuous Torque: 3604 in-lbs
- Continuous Pressure: 1250 psi
- Continuous Flow Rate: 15 gpm
- Motor Port Type: Straight Thread O-Ring SAE
- Motor Port Size: 7/8–14 UNF-2B
- Shaft Type: Straight
- Output Shaft Size: 1 in Straight - Woodruff Key
- Mounting Type: 4-Bolt Flange - 1.75 in Pilot
- Seal Type: Standard
