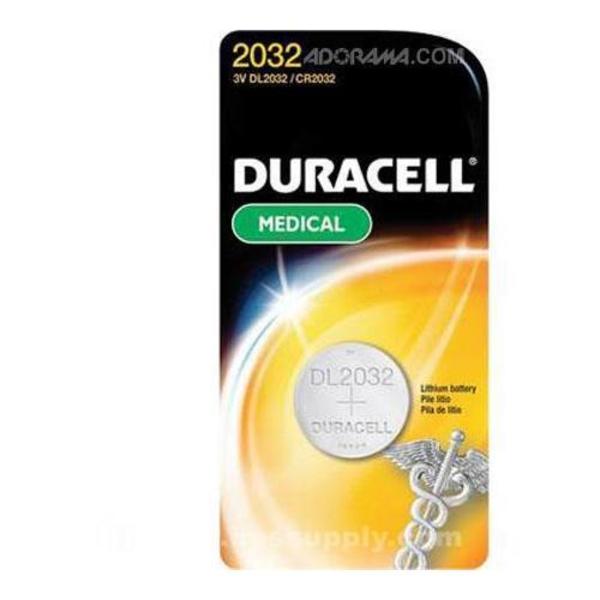

DURACELL DL2032B, BATTERY; NON-RECHARGEABLE; COIN/BUTTON
Quick Overview
Manufactured By: DURACELL
Manufacturer Part Number: DL2032B
IMS Product Code: 1791614
Packaging: Sold Individually
Description:
Duracell DL2032B, Battery; Non-Rechargeable; Coin/Button; Lithium Manganese Dioxide; 3VDC; 190mAh
Specifications:
- Capacity: 0.19 Ah
- Chemical System: Lithium Manganese Dioxide
- Dimensions: 0.79 Dia x 0.13" (20x3.3mm)
- NEDA Number: 5004LC
- Primary Type: Non-Rechargeable
- Product Header: Lithium-Manganese Dioxide Battery
- Series: Duracell DL Series
- Size: Coin/Button
- Standards: ANSI: 5004LC, IEC: CR2032
- Tab Type: Coin/Button Batteries
- Temperature, Operating: -4 to +129.2 F (-20 to +54C)
- Temperature, Operating, Maximum: 54 °C
- Temperature, Operating, Minimum: -20 °C
- Terminal Type: Flat
- Termination: Pressure Contact
- Type: Coin/Button Batteries
- Voltage Rating: 3 V
- Voltage, Battery: 3 V
- Volume: 0.04 cu.in.
- Weight: 0.11oz (3.12g)
