DI SORIC IRDB-6-PSK-IBS INDUCTIVE WIRE BREAK SENSOR

Call For Quote

Quick Overview

Manufactured By: DI SORIC
Manufacturer Part Number: IRDB-6-PSK-IBS
IMS Product Code: 1783947
Packaging: Sold Individually

Description:

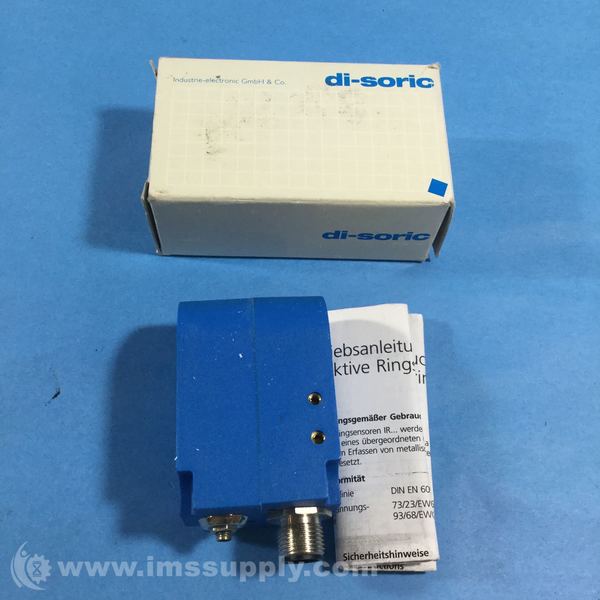

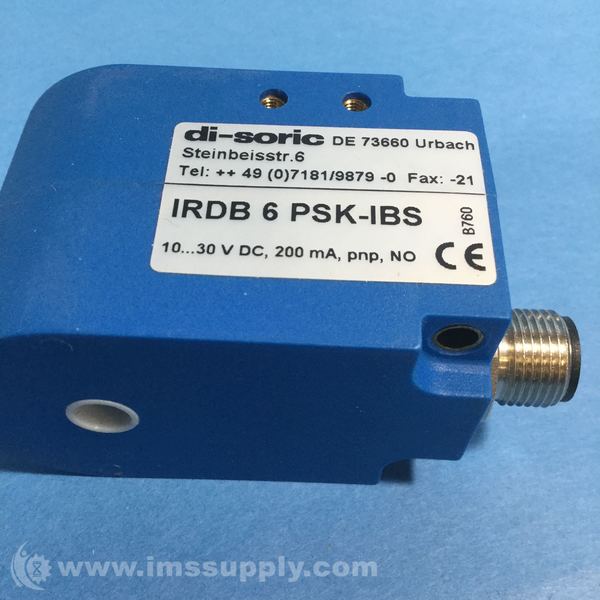

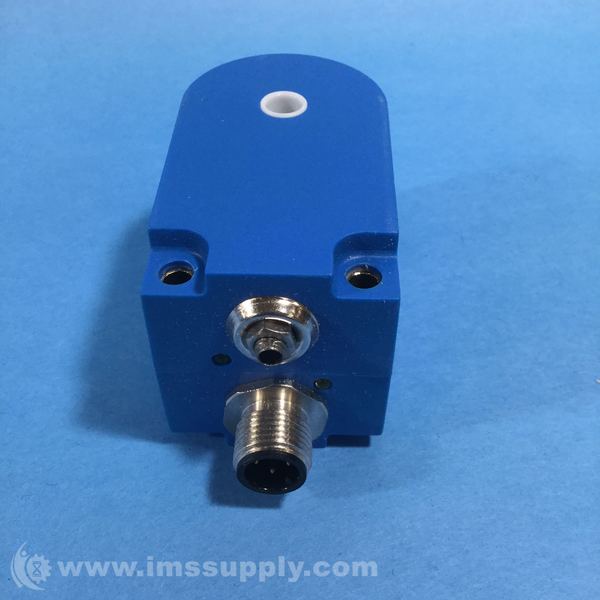

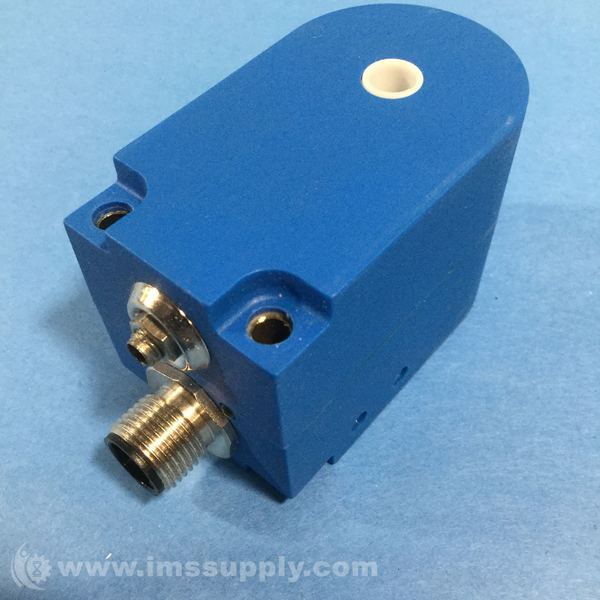

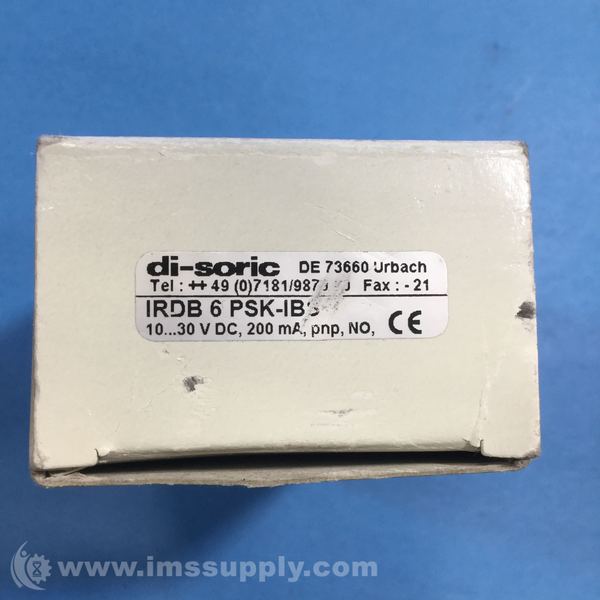

Di Soric IRDB-6-PSK-IBS Inductive Wire Break Sensor

Specifications:

  • Operating principle: Static
  • Inside diameter: 6,1 mm
  • Service voltage: 10 ... 35 V DC (Supply Class 2)
  • No-load current: < 11 mA
  • Resolution: Ø 0,2 mm (Cu-wire)
  • Sensitivity adjustment:  potentiometer
  • Mounting distance to metal:  > 5 mm
  • Switching output : pnp, 200 mA, NO/NC, switchable
  • Speed of parts: < 35 m/s
  • Pulse stretching: 10 ... 150 ms adjustable
  • Voltage drop: < 2,0 V
  • Response-/release time: 0,50 ms / 10 ms
  • Ambient temperature, operation: -25 … +70 °C
  • Insulation voltage endurance: 1.000 V
  • Protection class: IP 67
  • Protection degree: III, operation on protective low voltage
  • Casing material: polyamide / ring POM
  • Connection: Connector, M12, 4-poled
  • Connecting cable: VK ...
