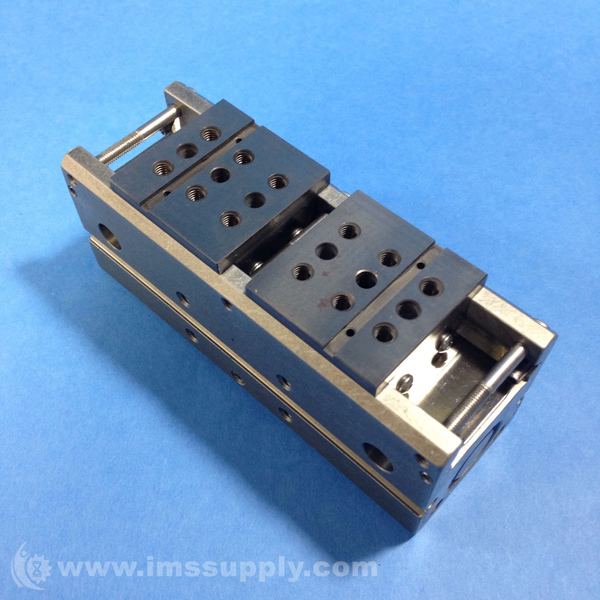

DESTACO DPP-20M-25 DIRECTCONNECT PRECISION PARALLEL GRIPPER
Quick Overview
Manufactured By: DESTACO

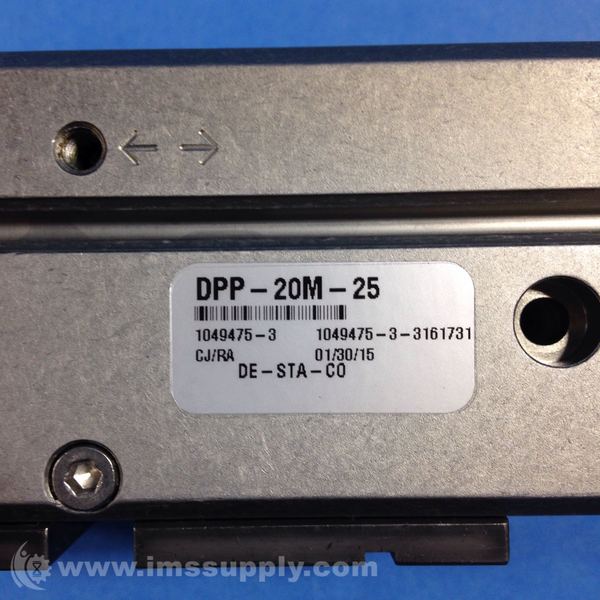

Manufacturer Part Number: DPP-20M-25
IMS Product Code: 1737931
Packaging: Sold Individually
Description:
* Features DIRECTCONNECT Mounting
* Patented Dual "V"" Roller Bearing Support "
* Excellent accuracy and repeatability
Grip Force (N) 422
Stroke (mm) 25.4
Weight (kg) 1.02
Cylinder Bore (mm) 20.70
Pressure Range Without Springs 5-100 psi
Pressure Range With Springs 40-100 psi
Temp Range Standard -35° to 80°C (-30° to 180°F)
Temp Range Viton -30° to 120°C (-20° to 250°F)
Actuation (Open/Closed) 0.2 sec
Accuracy (±mm) 0.030
Repeatability (±mm) 0.010
Maximum Finger Length (mm) 152
Product Type 2 Jaw Parallel
Direct Connect Yes
Jaw Operation Non-Synchronous Available
Spring Assist Optional
