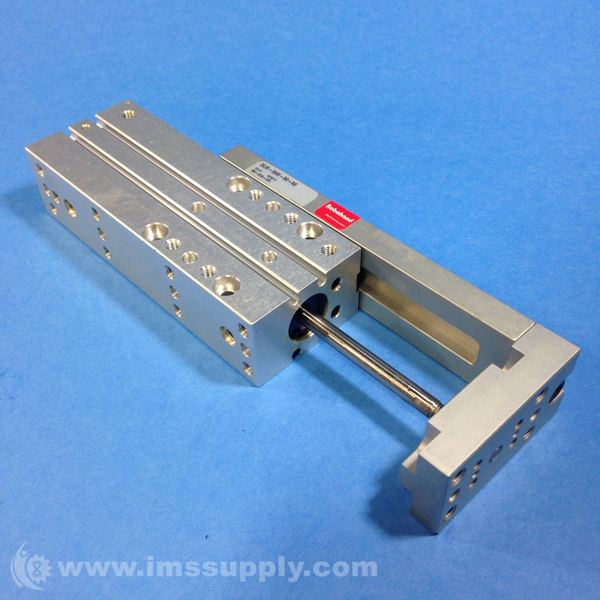

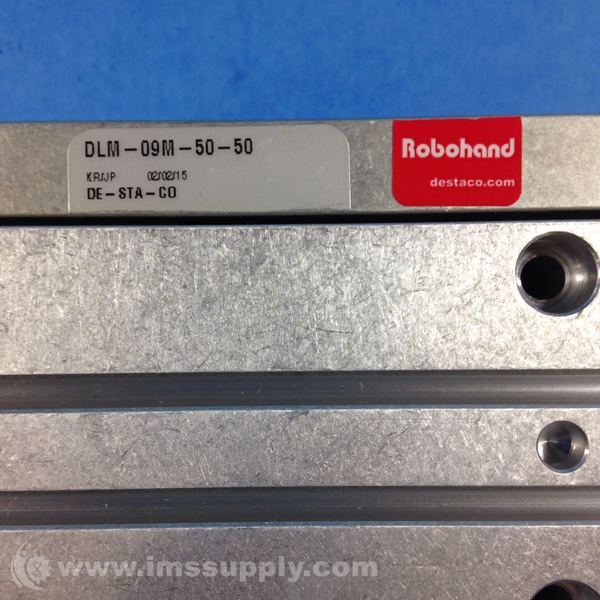

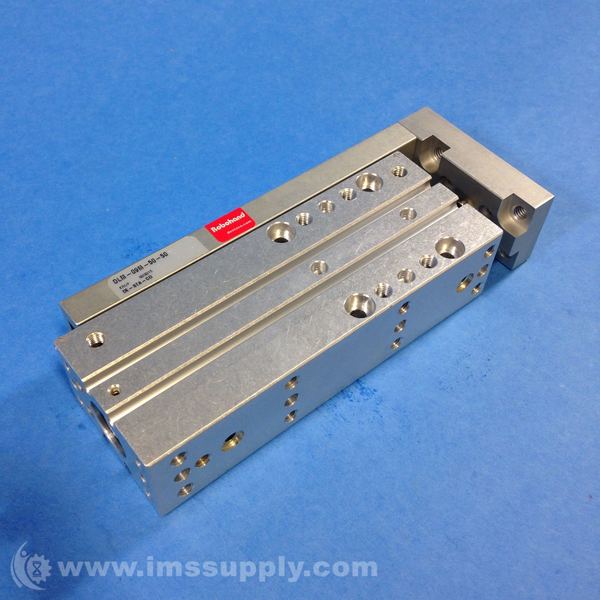

DESTACO DLM-09M-50-50 MINI BALL RAIL SLIDE
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: DLM-09M-50-50
IMS Product Code: 1737933
Packaging: Sold Individually
Description:
* Up to 8 position sensing available.
* Recirculating Double Bearing Option
* Adjustable Precision Stops
* Viton seal for high temperature applications available
* Single bearing
Max. Stroke (mm) 50.0
Payload (kg) 1
Cylinder Bore (mm) 16.00
Thrust Force (N) 138
Pressure Range (bar) 20-100 psi
Temp Range Standard -35° to 80°C (-30° to 180°F)
Actuation Time per 25 mm (1.00") of travel (sec) 0.10
Linear Accuracy per 25 mm travel (±mm) 0.005
Linear Accuracy per 1" travel (±in) 0.000
Direct Connect Yes
Special Feature High Moment Capacity
