DAYTON 4Z130C GEARMOTOR

Call For Quote

Quick Overview

Manufactured By: DAYTON
Manufacturer Part Number: 4Z130C
IMS Product Code: 1736760
Packaging: Sold Individually

Description:

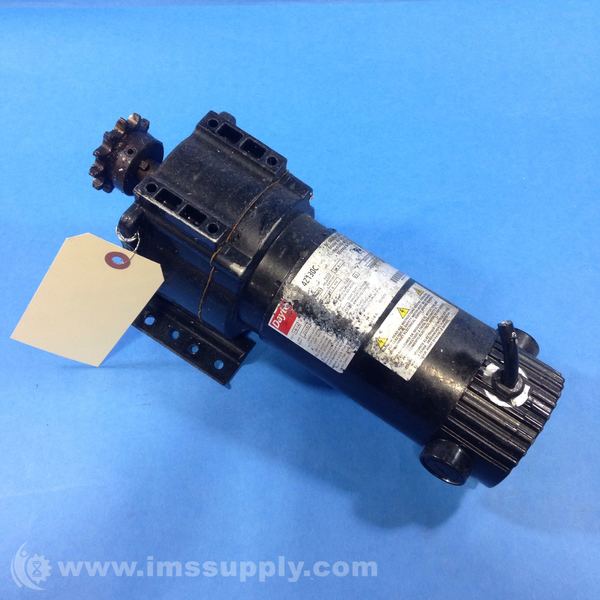

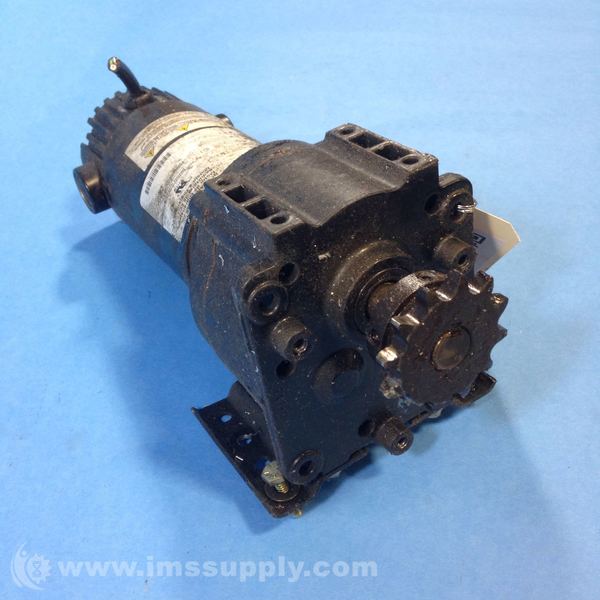

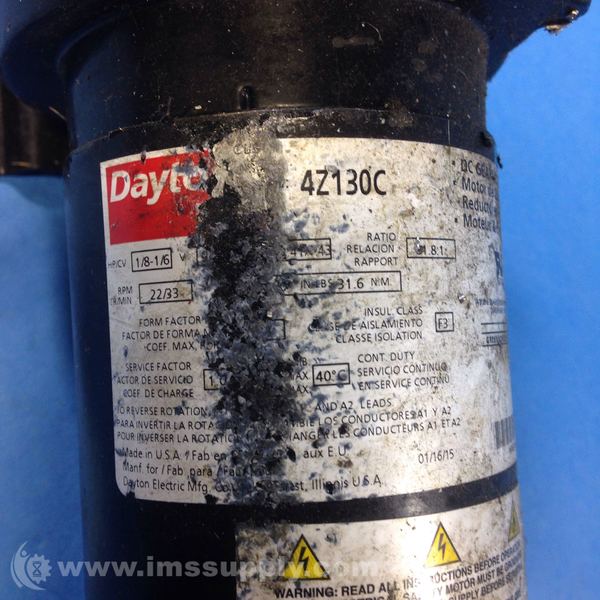

Dayton 4Z130C Gearmotor

Specifications:

  • Item: DC Gearmotor
  • Voltage: 90VDC
  • Shaft Orientation: Parallel
  • Reversible Shaft Output: No
  • Nameplate RPM: 22
  • Max. Torque: 280 in.-lb.
  • Overhung Load: 150 lb.
  • Input HP: 1/8
  • Gear Ratio: 82:1
  • Full Load Amps: 1.41
  • Enclosure: TENV
  • Thermal Protection: None
  • Max. Ambient Temp.: 40 Degrees C
  • Rotation: Reversible
  • Mounting: All Position
  • Motor Type: Permanent Magnet DC
  • Length Less Shaft: 10-1/8"
  • Overall Length: 11-5/8"
  • Bearings: Needle Roller and Thrust Balls on Case, Ball on Motor
  • Lubrication: Permanent Heavy Fluid Gear Oil
  • Brushes: Externally Replaceable
  • Gear Material: Hardened Steel
  • Gear Case: Die Cast Aluminum
  • Seals: On Input and Output Shaft
  • Housing Material: Die Cast Aluminum
  • Replacement Brushes: 6YHY6
