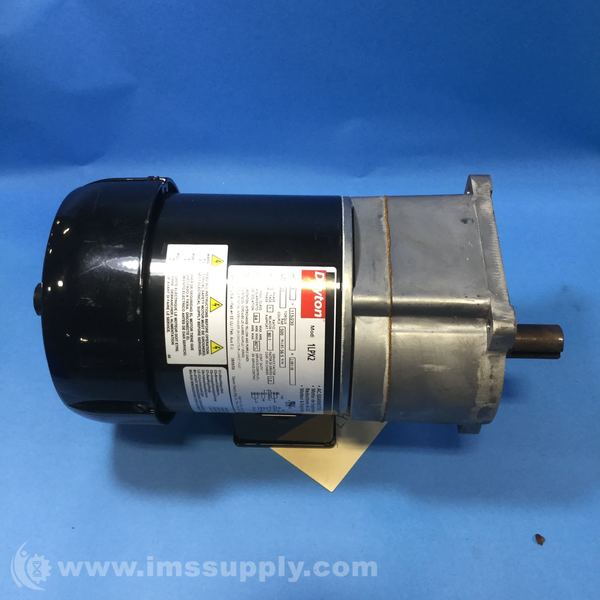

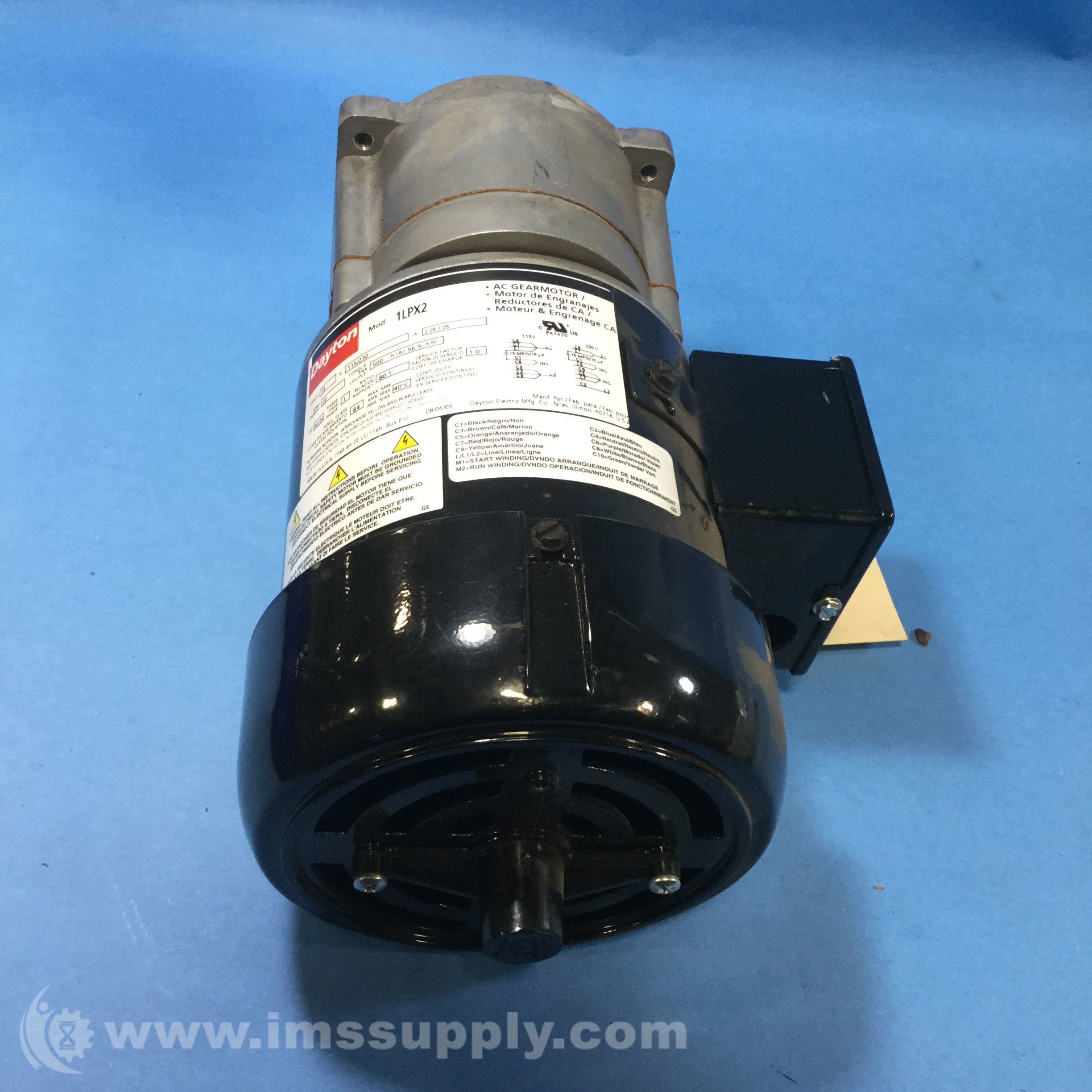

DAYTON 1LPX2 AC GEARMOTOR, 20RPM, TEFC, 115/230V, 1/5HP

Call For Quote

Quick Overview

Manufactured By: DAYTON
Manufacturer Part Number: 1LPX2
IMS Product Code: 1792680
Packaging: Sold Individually

Description:

Dayton 1LPX2 AC Gearmotor, 20RPM, TEFC, 115/230V, 1/5HP

Specifications:

  • Shaft Dia. (Dimension U): 3/4"
  • Item: AC Gearmotor
  • Thermal Protection: None
  • Bearings: Ball and Needle on Case, Ball on Motor
  • Input HP: 1/5
  • Capacitor Required: Included
  • Reversible Shaft Output: No
  • Rotation: Reversible
  • Seals: Lip Type on Input and Output Shaft
  • Number of Brake Discs Required: 2
  • Phase: 1
  • Enclosure: TEFC
  • Motor Type: PSC
  • Max. Torque: 500.0 in.-lb.
  • Gear Ratio: 80:1
  • Mounting: All Position
  • Gear Case Material: Die Cast Aluminum
  • Gear Material: Hardened Steel
  • Finish: Unpainted
  • Housing: Die Cast Aluminum
  • Shaft Orientation: Parallel
  • RPM Range: 16 to 30
  • Standards: cRUus
  • Keyway Size: 0.18" Square x 1"
  • Shaft: Single Output
  • RPM @ 50 Hz: 17
  • Overhung Load: 400 lb.
  • Gears: Hardened Steel, 1st Stage Helical, Subsequent Stages Spur
  • Gear Type: Helical First Stage/Subsequent Stages Spur
  • Lubrication: Grease filled
  • Insulation Class: b
  • Full Load Amps: 2.05/1.05
  • Voltage: 115/230
  • Length Less Shaft: 10"
  • Nameplate RPM: 20
  • Hz: 60/50
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Length (Dimension V): 1.38"
  • Brake: Adaptable to 5X400
  • Country of Origin (subject to change): United States
