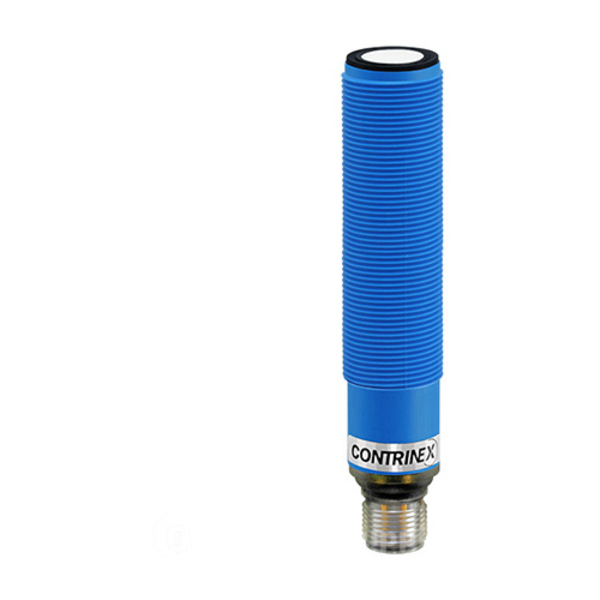

CONTRINEX UST-M18PS-TMS-813 CLASSIC ULTRASONIC SENSOR
Starting At: $156.99
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: UST-M18PS-TMS-813
IMS Product Code: 1786663
Packaging: Sold Individually
Description:
Contrinex UST-M18PS-TMS-813 Mid Range Classic Ultrasonic Sensor
Specifications
| Operating principle | Diffuse |
|---|---|
| Range max. | 100...900 mm |
| Housing size [mm] | M18 |
| Polarity | PNP |
| Output | 2 NO (default)/NC + SYNC/MUX |
| Interface | Standard output |
| Connection | M12 5-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 4 |
| Housing material | PBT |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
