CONTRINEX TRU-C23PA-TMS-60D CLEAR OBJECT PHOTOELECTRIC SENSOR
Starting At: $247.62
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: TRU-C23PA-TMS-60D
IMS Product Code: 1783542
Packaging: Sold Individually
Description:

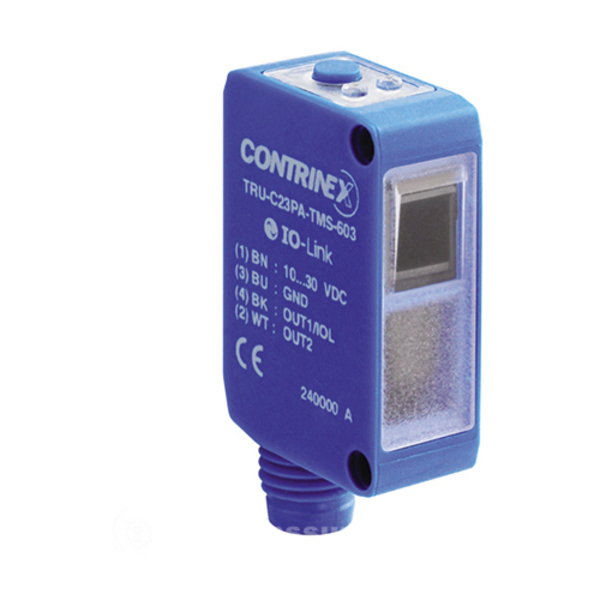

Contrinex TRU-C23PA-TMS-60D Ultraviolet Clear Object Photoelectric Sensor
Specifications
| Operating principle | Transparent reflex |
|---|---|
| Sensing range typ. Max. | 0…1200 mm |
| Light source | Led, UV 275 nm, Risk Group 2 |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 40…1200 mm, teach or IO-Link |
| Polarity | PNP |
| Output | Dark-on/IO-Link + Stability alarm |
| Interface | IO-Link |
| Connection | M8 4-pin |
| Supply voltage | 15...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 28 to 35 Days
