CONTRINEX TRU-C23PA-TMS-603 CLEAR OBJECT PHOTOELECTRIC SENSOR
Starting At: $244.06
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: TRU-C23PA-TMS-603
IMS Product Code: 1783537
Packaging: Sold Individually
Description:

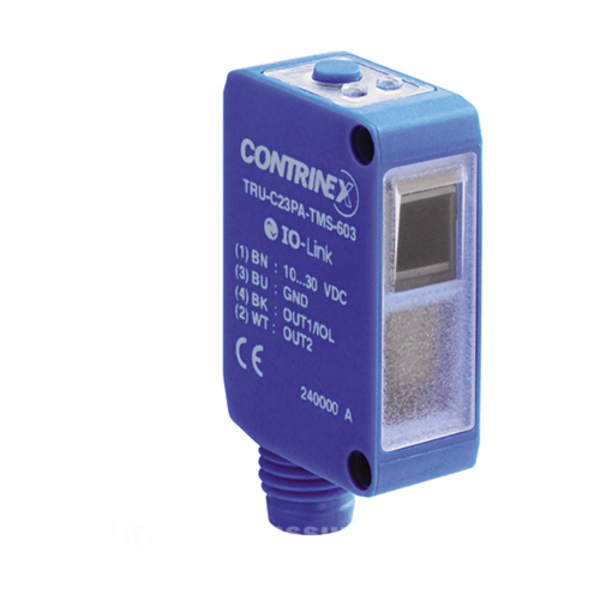

Contrinex TRU-C23PA-TMS-603 Ultraviolet Clear Object Photoelectric Sensor
Specifications
| Operating principle | Transparent reflex |
|---|---|
| Sensing range typ. Max. | 0…1200 mm |
| Light source | Led, UV 275 nm, Risk Group 2 |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 40…1200 mm, teach or IO-Link |
| Polarity | PNP |
| Output | Light-on/IO-Link + Dark-on |
| Interface | IO-Link |
| Connection | M8 4-pin |
| Supply voltage | 15...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
