CONTRINEX TRR-C23PA-TMS-10B CLEAR OBJECT PHOTOELECTRIC SENSOR
Starting At: $131.24
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: TRR-C23PA-TMS-10B
IMS Product Code: 1783531
Packaging: Sold Individually
Description:

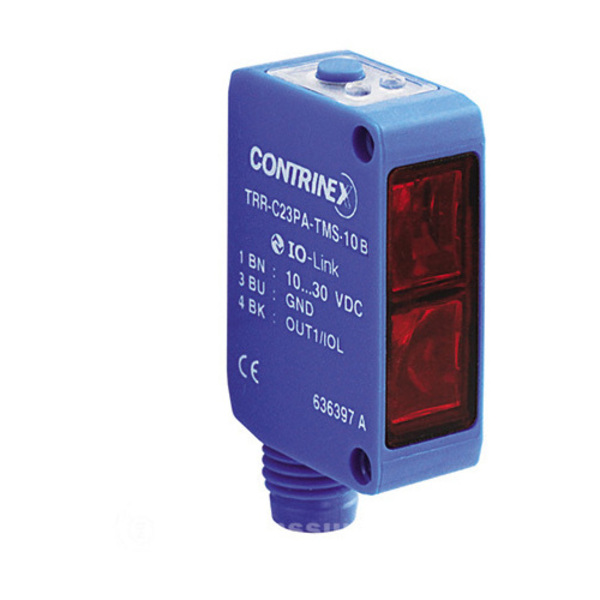

Contrinex TRR-C23PA-TMS-10B Reflective Clear Object Photoelectric Sensor
Specifications
| Operating principle | Transparent reflex |
|---|---|
| Sensing range typ. Max. | 10…5000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 30…5000 mm, teach |
| Polarity | NPN |
| Output | Dark-on + Stability alarm |
| Interface | Standard output |
| Connection | M8 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
