CONTRINEX LTS-1180W-104 HEAVY DUTY PHOTOELECTRIC SENSOR
Starting At: $66.36
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LTS-1180W-104
IMS Product Code: 1783690
Packaging: Sold Individually
Description:

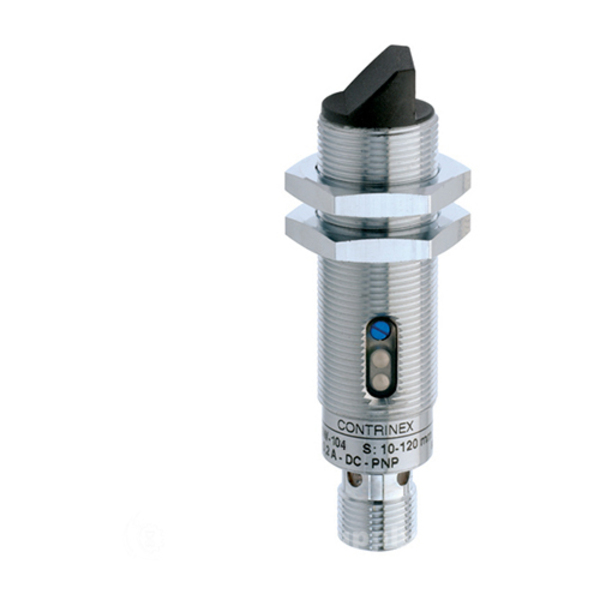

Contrinex LTS-1180W-104 Diffuse Heavy Duty Photoelectric Sensor
Specifications
| Operating principle | Diffuse |
|---|---|
| Light source | LED, red 660 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | 3/4-turn potentiometer |
| Polarity | PNP |
| Output | Light-on + Excess gain |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...36 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...55 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 28 to 35 Days
