CONTRINEX LTS-1180L-104 HEAVY DUTY PHOTOELECTRIC SENSOR
Starting At: $181.07
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LTS-1180L-104
IMS Product Code: 1783699
Packaging: Sold Individually
Description:

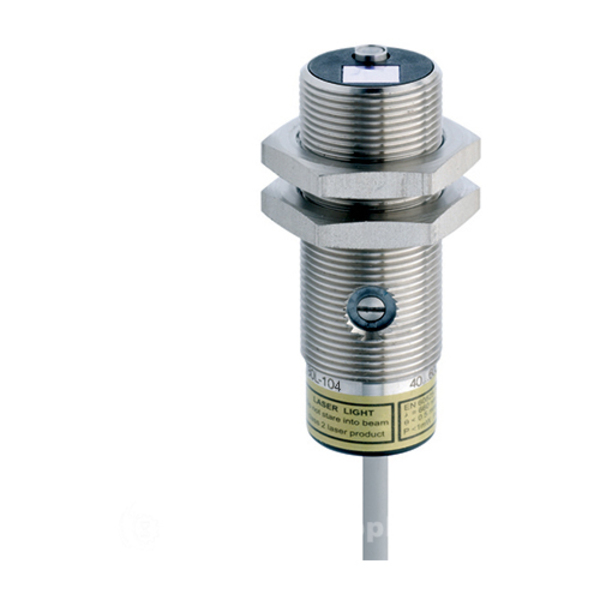

Contrinex LTS-1180L-104 Laser Diffuse Heavy Duty Photoelectric Sensor
Specifications
| Operating principle | Diffuse |
|---|---|
| Light source | Laser class 2, red 660 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | 3-turn potentiometer |
| Polarity | PNP |
| Output | Light-on + Excess gain |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...36 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | Stainless steel V2A |
| Temperature range | -10...50 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 28 to 35 Days
