CONTRINEX LTR-C23PA-PMK-101 WASHDOWN PHOTOELECTRIC SENSOR
Starting At: $47.45
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LTR-C23PA-PMK-101
IMS Product Code: 1783435
Packaging: Sold Individually
Description:

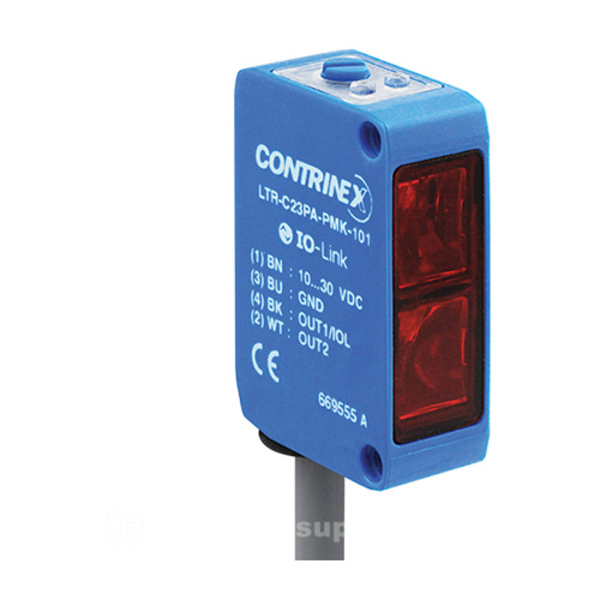

Contrinex LTR-C23PA-PMK-101 Diffuse Washdown Photoelectric Sensor
Specifications
| Operating principle | Diffuse |
|---|---|
| Sensing range typ. Max. | 3…1500 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 30…1500 mm, 3/4-turn pot. |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Interface | Standard output |
| Connection | PVC, 2 m, 4 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
