CONTRINEX LRS-3030-103 COMPACT PHOTOELECTRIC SENSOR
Starting At: $75.10
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LRS-3030-103
IMS Product Code: 1783839
Packaging: Sold Individually
Description:

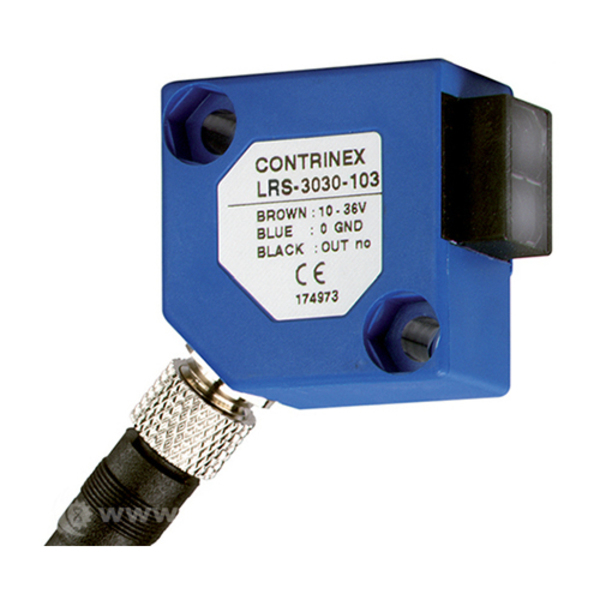

Contrinex LRS-3030-103 Reflective Compact Photoelectric Sensor
Specifications
| Operating principle | Reflex |
|---|---|
| Light source | LED, red 660 nm |
| Housing size [mm] | 30 x 30 |
| Sensitivity adjustment | 12-turn potentiometer |
| Polarity | PNP |
| Output | Light-on + Dark-on |
| Interface | Standard output |
| Connection | M8 4-pin |
| Supply voltage | 10...36 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | PBTP (Crastin) |
| Temperature range | -25...55 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
