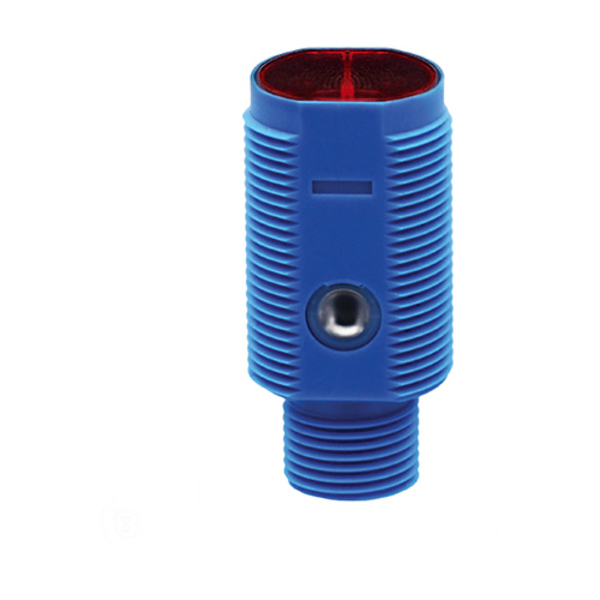

CONTRINEX LRR-M18PA-NMS-404 BARREL PHOTOELECTRIC SENSOR
Starting At: $50.97
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LRR-M18PA-NMS-404
IMS Product Code: 1783332
Packaging: Sold Individually
Description:
Contrinex LRR-M18PA-NMS-404 Reflective Barrel Photoelectric Sensor
Specifications
| Operating principle | Reflex |
|---|---|
| Sensing range typ. Max. | 20…7000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | 2500…7000 mm, IO-Link |
| Polarity | PNP |
| Output | Dark-on/IO-Link |
| Interface | IO-Link |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
