CONTRINEX LRR-C23PA-NMK-302 WASHDOWN PHOTOELECTRIC SENSOR
Starting At: $51.16
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LRR-C23PA-NMK-302
IMS Product Code: 1783485
Packaging: Sold Individually
Description:

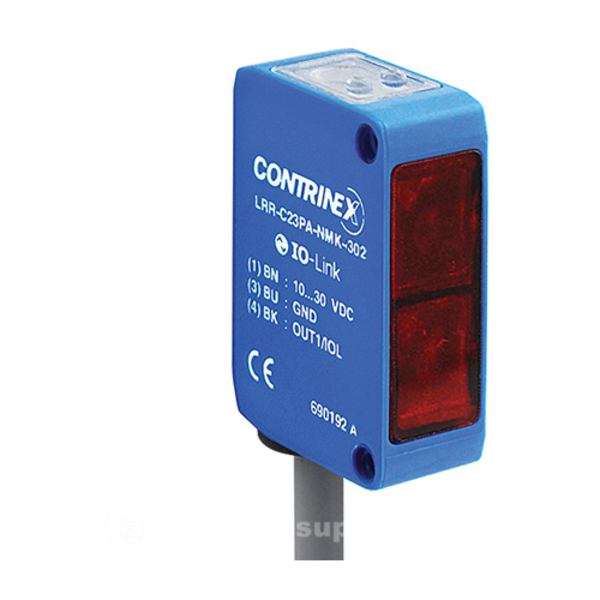

Contrinex LRR-C23PA-NMK-302 Reflective Washdown Photoelectric Sensor
Specifications
| Operating principle | Reflex |
|---|---|
| Sensing range typ. Max. | 20…8000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | No |
| Polarity | NPN |
| Output | Dark-on |
| Interface | Standard output |
| Connection | PVC, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
