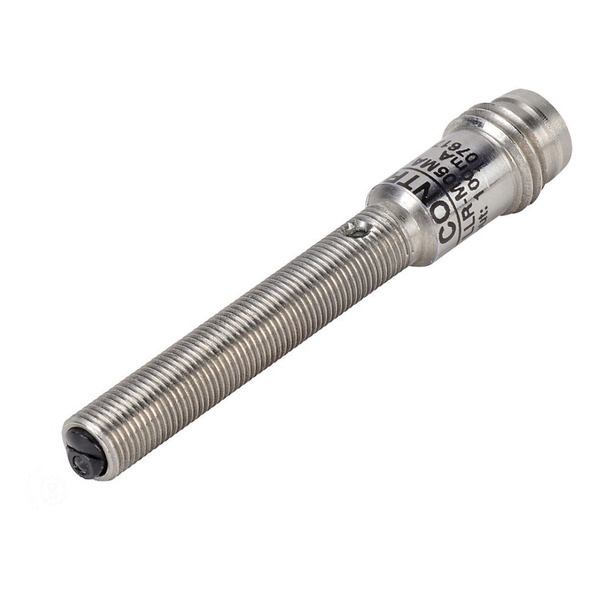

CONTRINEX LLR-M05MA-NMS-404 MICRO PHOTOELECTRIC SENSOR
Starting At: $70.63
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LLR-M05MA-NMS-404
IMS Product Code: 1903157
Packaging: Sold Individually
Description:
| Operating principle | Through-beam |
|---|---|
| Sensing range typ. Max. | 0...600 mm |
| Light source | LED, red 680 nm |
| Housing size [mm] | M5 |
| Sensitivity adjustment | 10...600 mm, IO-Link |
| Polarity | PNP |
| Output | Dark-on |
| Interface | IO-Link |
| Connection | M8 3-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 35 to 42 Days
