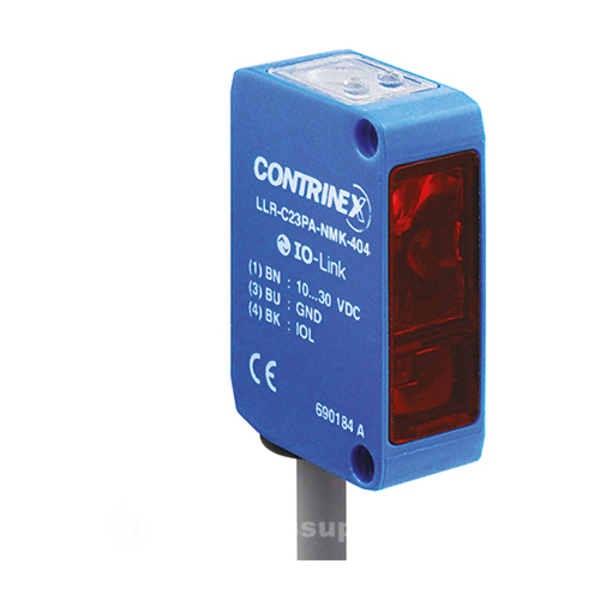

CONTRINEX LLR-C23PA-NMK-404 WASHDOWN PHOTOELECTRIC SENSOR
Starting At: $42.09
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LLR-C23PA-NMK-404
IMS Product Code: 1783495
Packaging: Sold Individually
Description:
Contrinex LLR-C23PA-NMK-404 Through Beam Washdown Photoelectric Sensor
Specifications
| Operating principle | Through-beam |
|---|---|
| Sensing range typ. Max. | 0…30000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | 20 x 30 (C23) |
| Sensitivity adjustment | 2000…30000 mm, IO-Link |
| Polarity | PNP |
| Output | Dark-on/IO-Link |
| Interface | IO-Link |
| Connection | PVC, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
