CONTRINEX LLR-C12PA-NMV-302 MINIATURE PHOTOELECTRIC SENSOR
Starting At: $86.12
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LLR-C12PA-NMV-302
IMS Product Code: 1783274
Packaging: Sold Individually
Description:

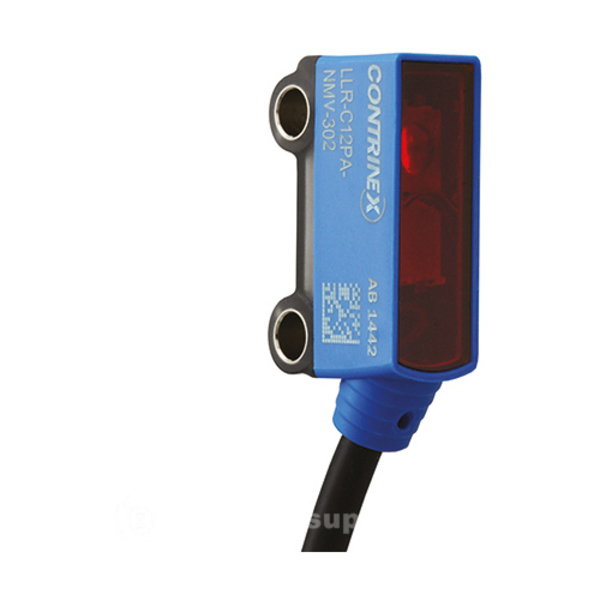

Contrinex LLR-C12PA-NMV-302 Through Beam Miniature Photoelectric Sensor
Specifications
| Operating principle | Through-beam |
|---|---|
| Sensing range typ. Max. | 0...2000 mm |
| Light source | Pinpoint LED, red 640 nm |
| Housing size [mm] | 13 x 21 (C12) |
| Sensitivity adjustment | No |
| Polarity | NPN |
| Output | Dark-on |
| Interface | Standard output |
| Connection | PVC, 0.2 m + M8 3-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 800 |
| Housing material | ABS |
| Temperature range | -20...50 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
